[INFO] Board diagram and part numbers

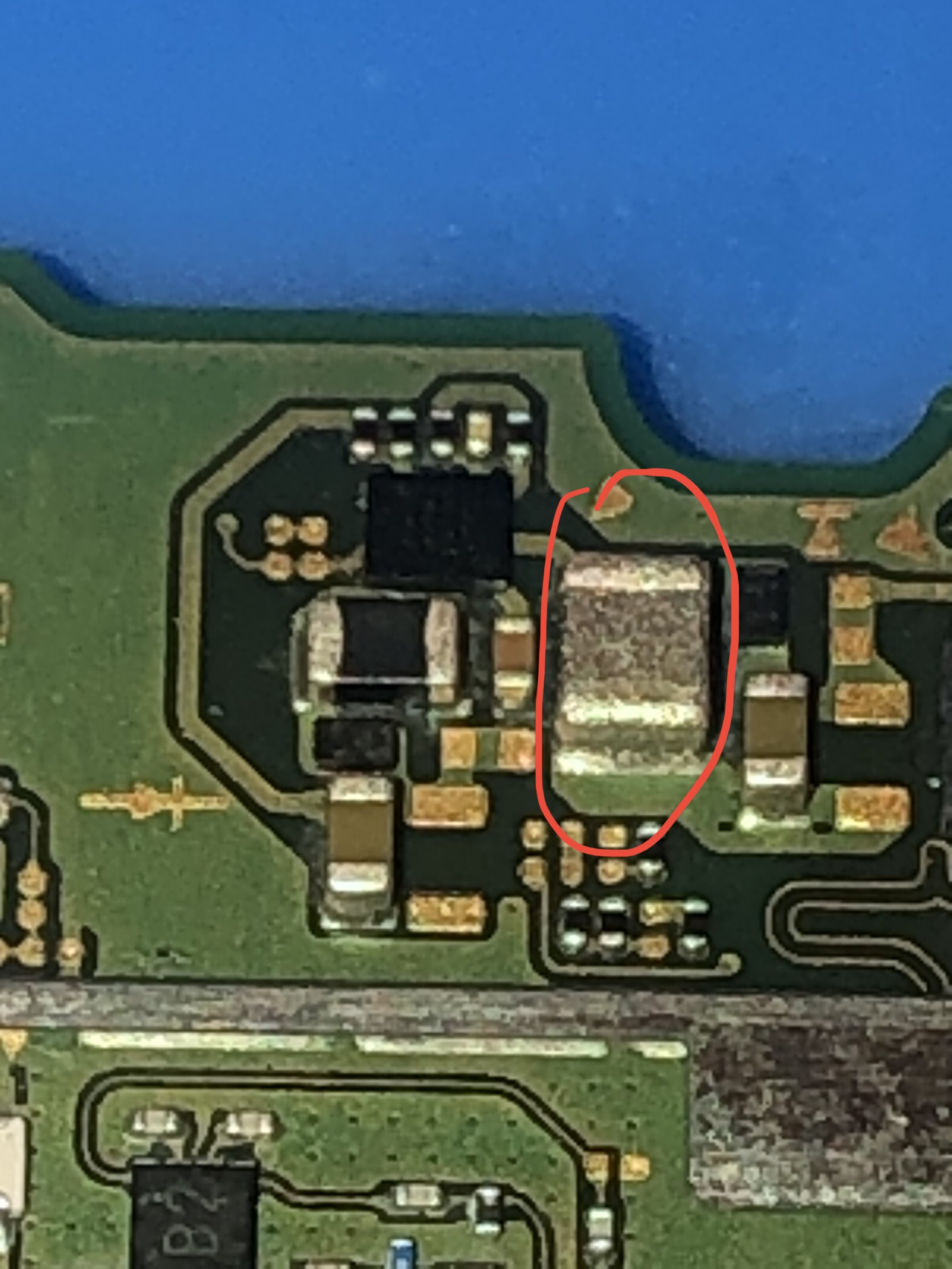

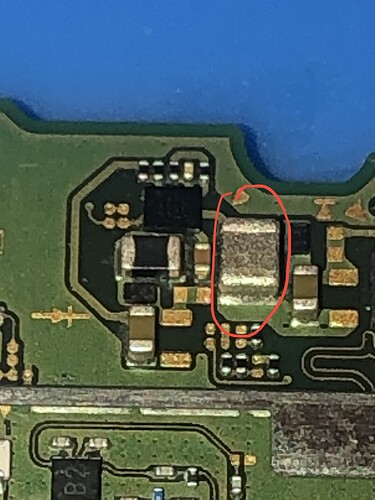

Is this meant to short to ground on both side?

that’s an inductor, most likely low impedance. Check resistance instead of just relying on continuity.

Pg.11 Yes, it goes to ground

Can someone confirm these cap values? Its for a v2.


Perhaps it is this?
MLCC - SMD/SMT 22 uF 6.3 VDC 20% 0603 X5R

Does anyone know the specs of the two missing SMD components below the MAX77621? One seemed to be a cap (yellow), one was black (not sure what type of component it was).

1 Like

“both are 0.1uF_6.3v caps” according to www.tronicsfixforum. com/t/need-caps-value-near-max77621-and-max77620/9807/15?u=qwertychouskie

Have opened another topic, but maybe here is a better place -
does anybody know this component ?

https://www.tronicsfixforum.com/t/oled-purple-screen-missing-cap-need-help-identifying/10617

99% sure thats just a small value (1~10nF) cap for either power or volume button. It would just work without it,

hey i have a stripped rst point on a v1 board does anyone know were it goes to so i can make a “bypass”

(i cannot attach any photos idk why)

i tried to repair it but it turns on and then goes off afer a minute or so

Hi, I broke the connector for Bluetooth. Does anyone know which part name / number it is?

Thank you in advance

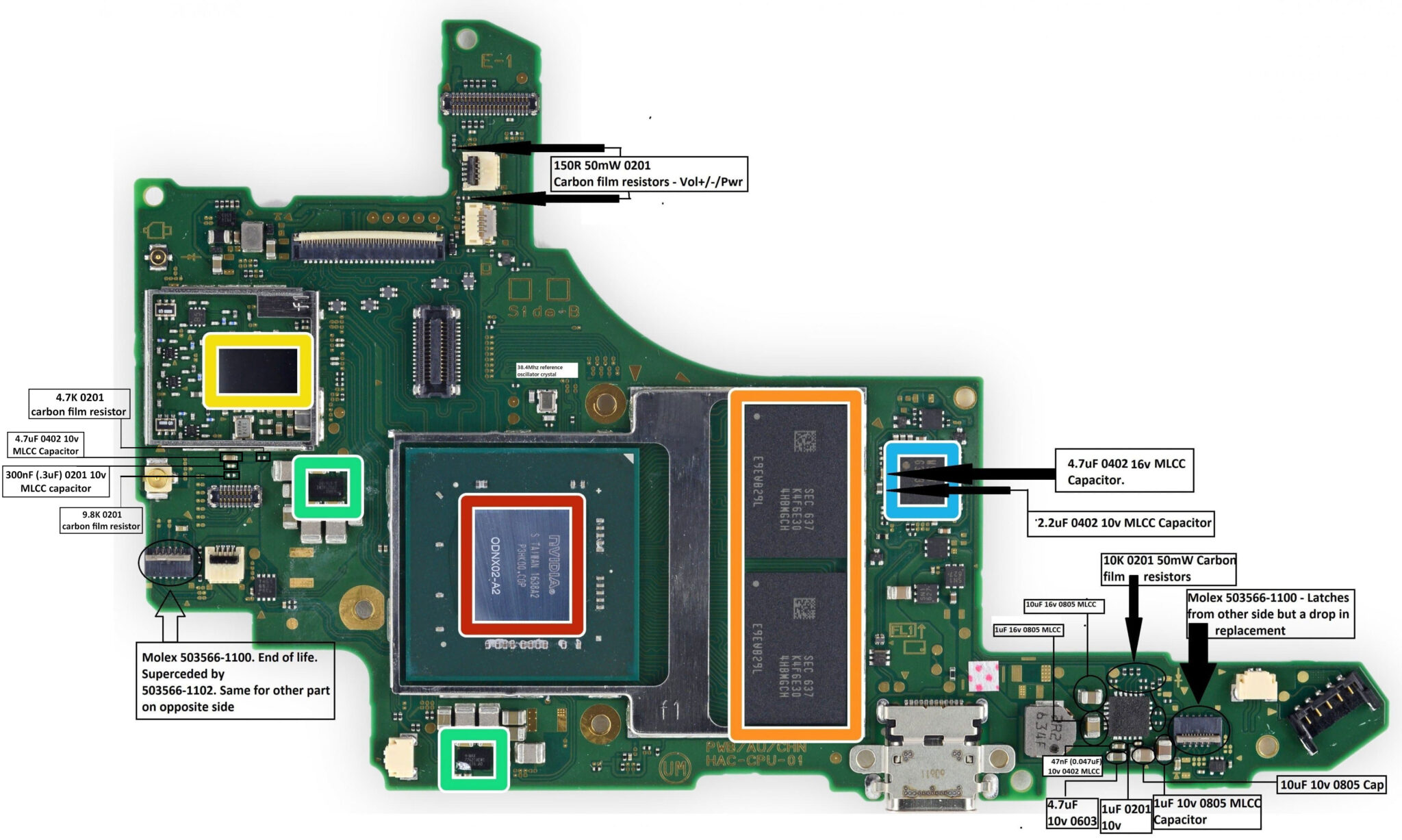

Anyone know the value of this resistor on the mainboard between the fan connector and the pwr/vol connector? There’s one in this photo marked 150Ohms, I’m looking for the resistor just to the right of that one (in reference to photo). Wish I could upload a photo to show what I mean, but I’m not allowed to upload apparently. I’m assuming it’s for volume control.

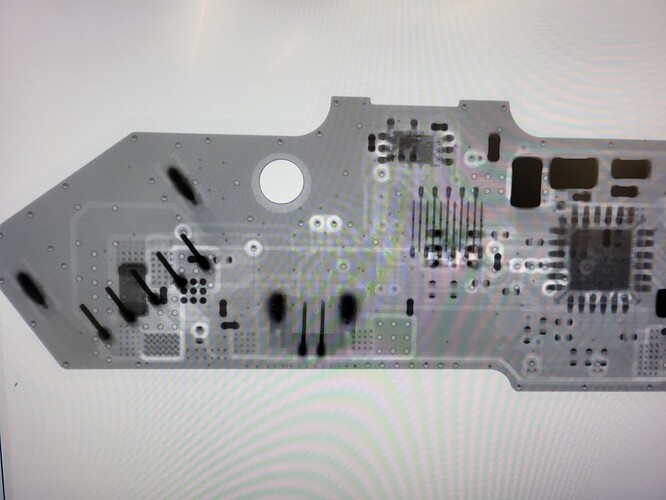

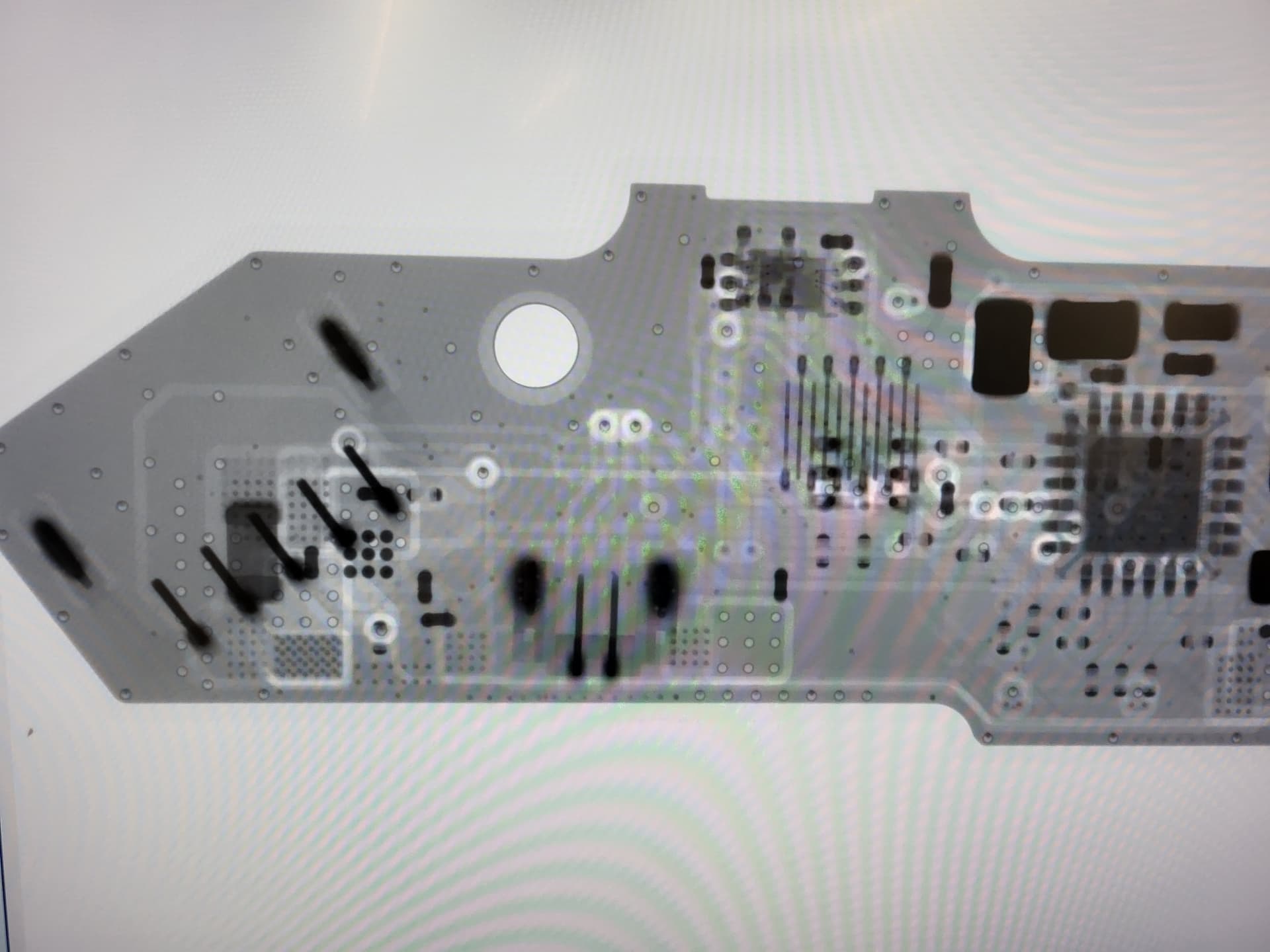

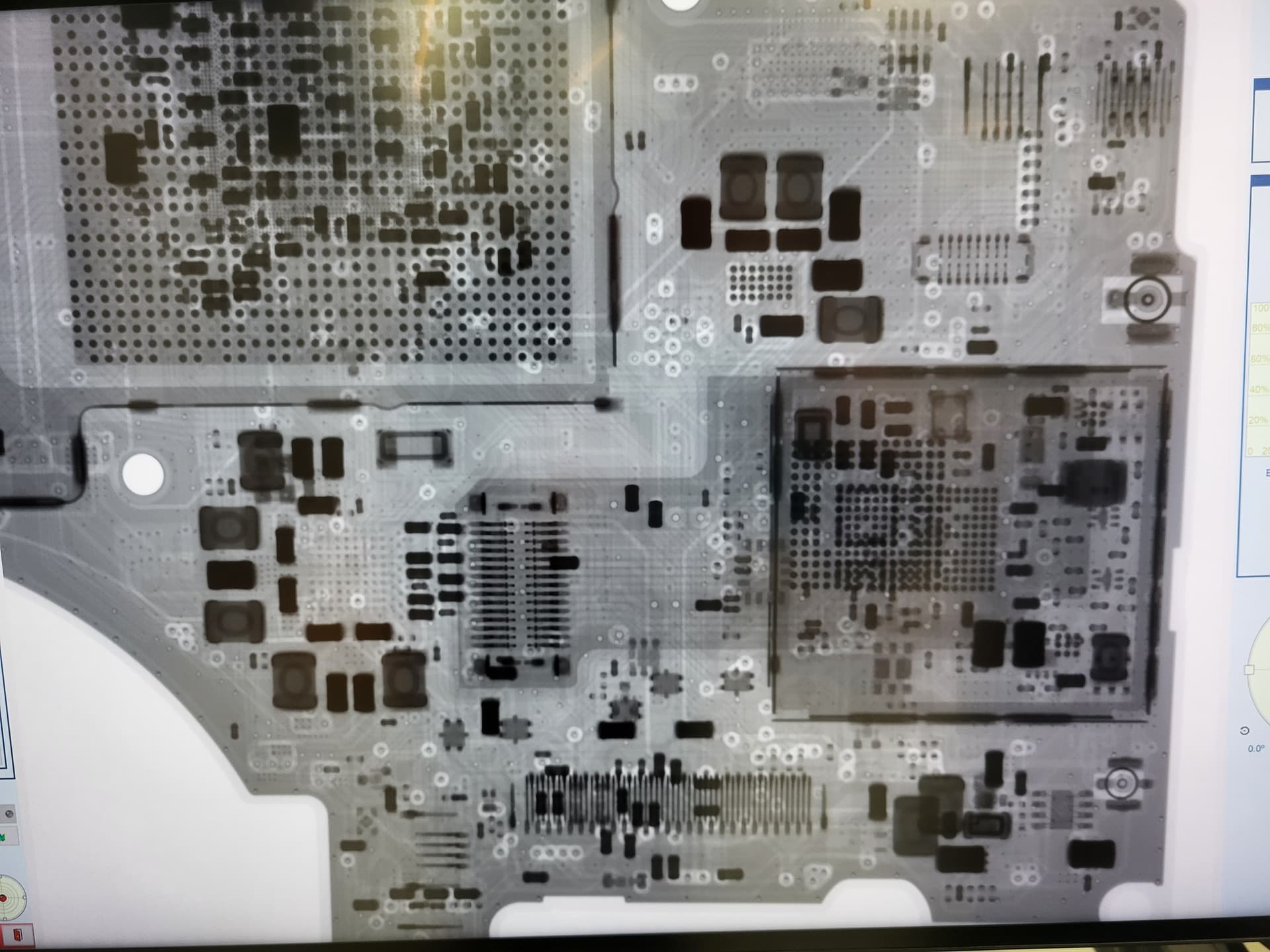

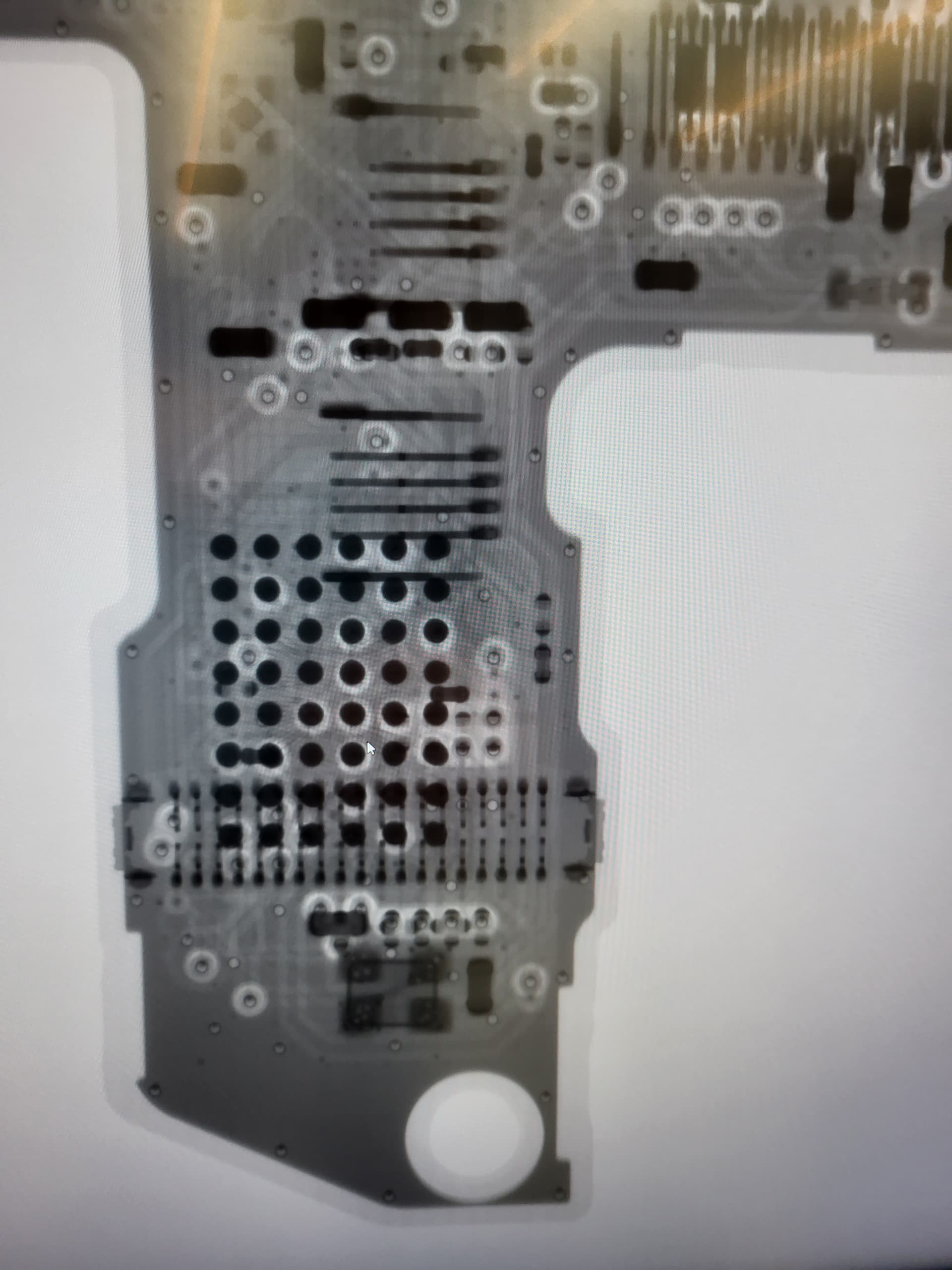

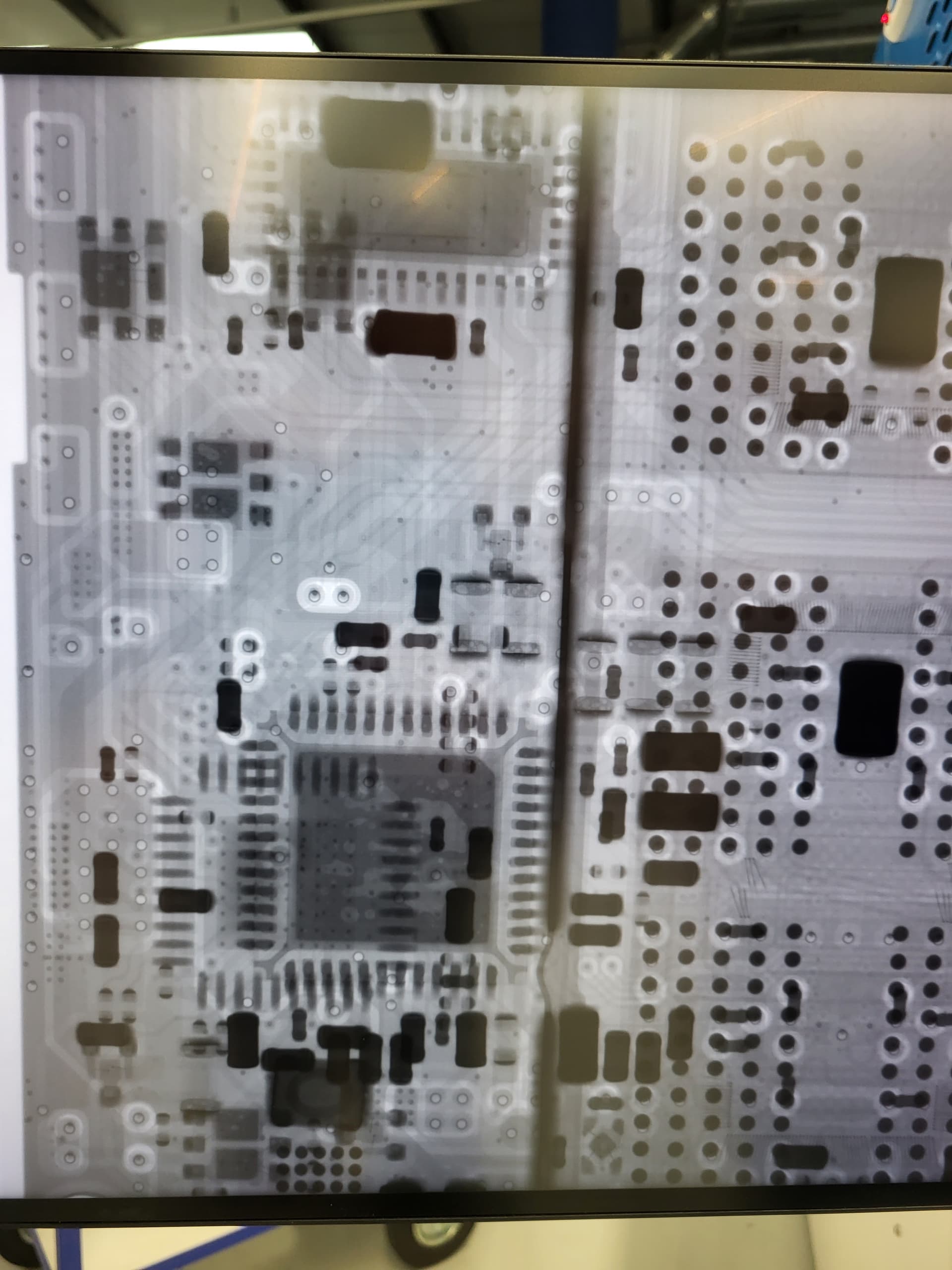

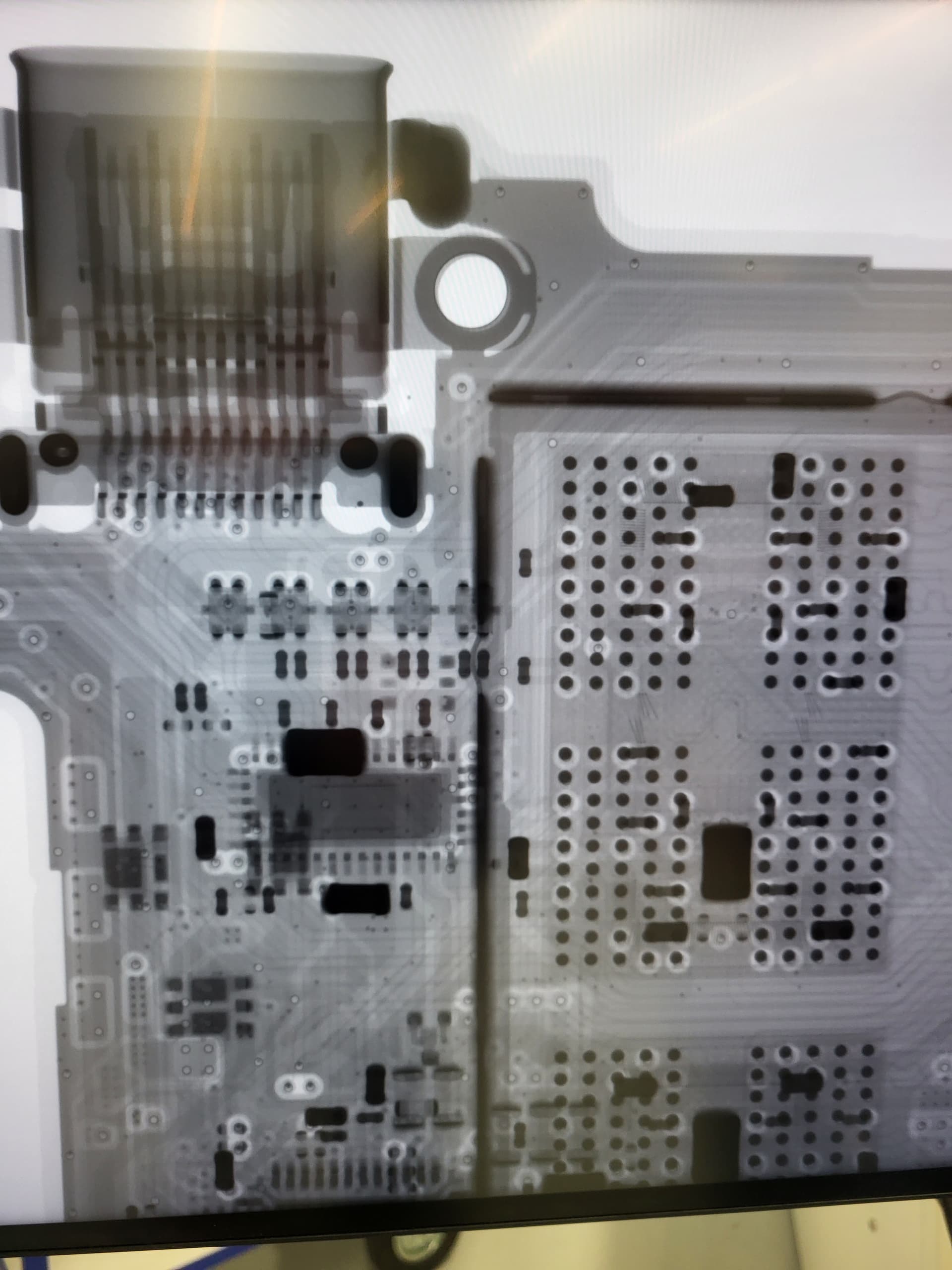

Might be useful to see connections. X rayed nintendoswitch boards

1 Like

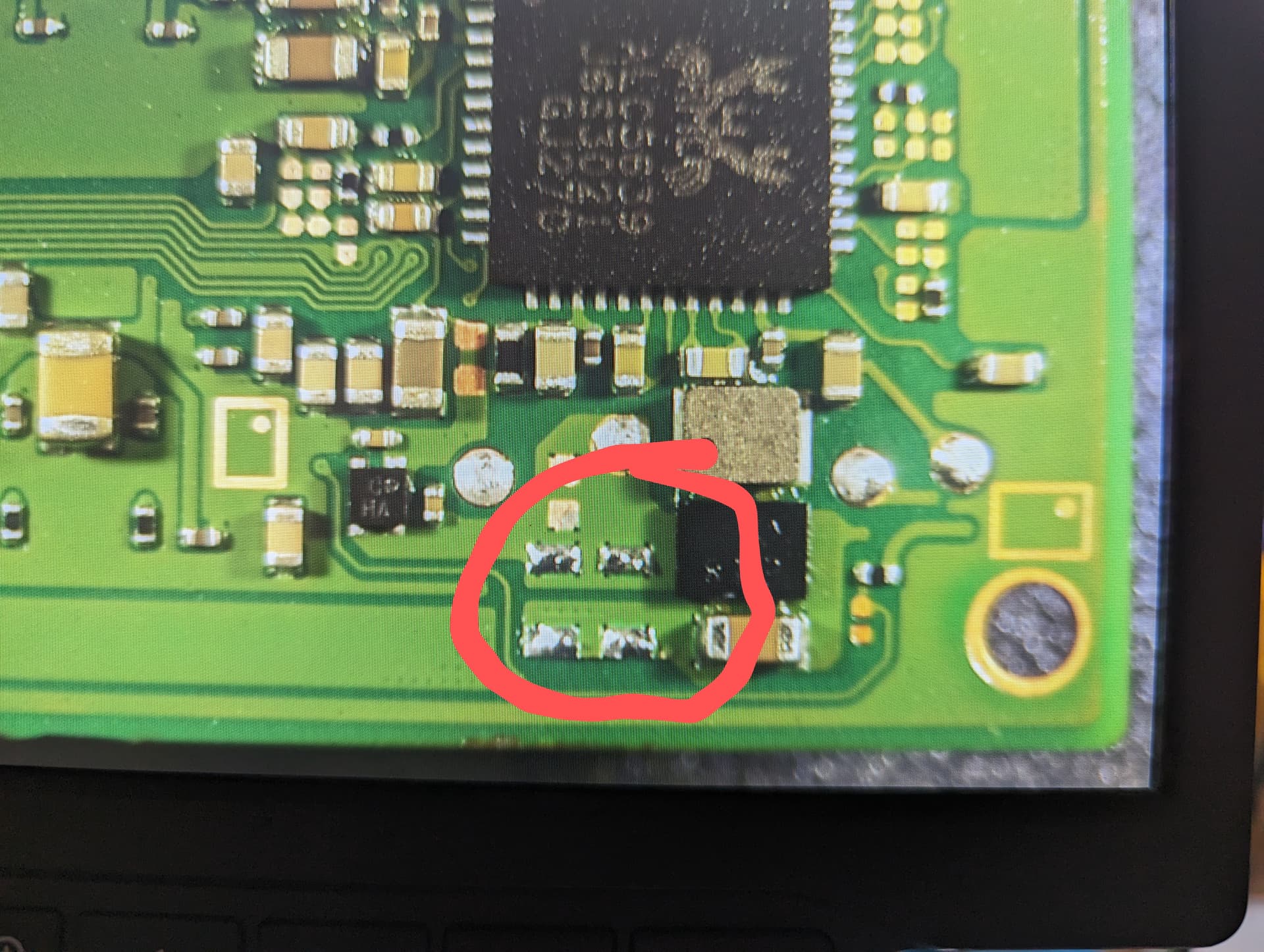

Hey there,
could someone possibly tell me what the components and their values would be?
I was doing work on the opposite side of the board close to the battery connector and knocked them off, forgot to put the hot air away and they flew into the ether. Any help would be greatly appreciated.
The components missing are close to the “Side A” label of the PCB

Hello, in the picture n°8 i don’t read the value of big capacitor on the sx of the bq.
Can you help me? .

Thanks :pray: and sorry for my bad english.

Thank you so much. this is the right value? i have found another table with 1uf 16v capacitor instead of 22uf 6,3v

BQ24193

on Page34, good luck looking into datasheet

On Page 34 there are 2 capacitor 1uf and 10uf. The right value Is that i have posted or the value that you give me ? :pray: Thanks you very much for your help

I guess you cant tell what pin the capacitor is on,right?
Good luck with the value you found from that picture. AFAIK, official charger shoot out 15v From M92T Vex pin to BQ pin1/pin24 Vbus. Look closely what voltage rate over there on that picture.

1 Like

Tienen alguna diferencia, porque no encuentro el respuesto de +ALJ

Can you give me the dock borad dimensions in mm, i am trying to make a custom dock so i need dimensions to make room in the model
