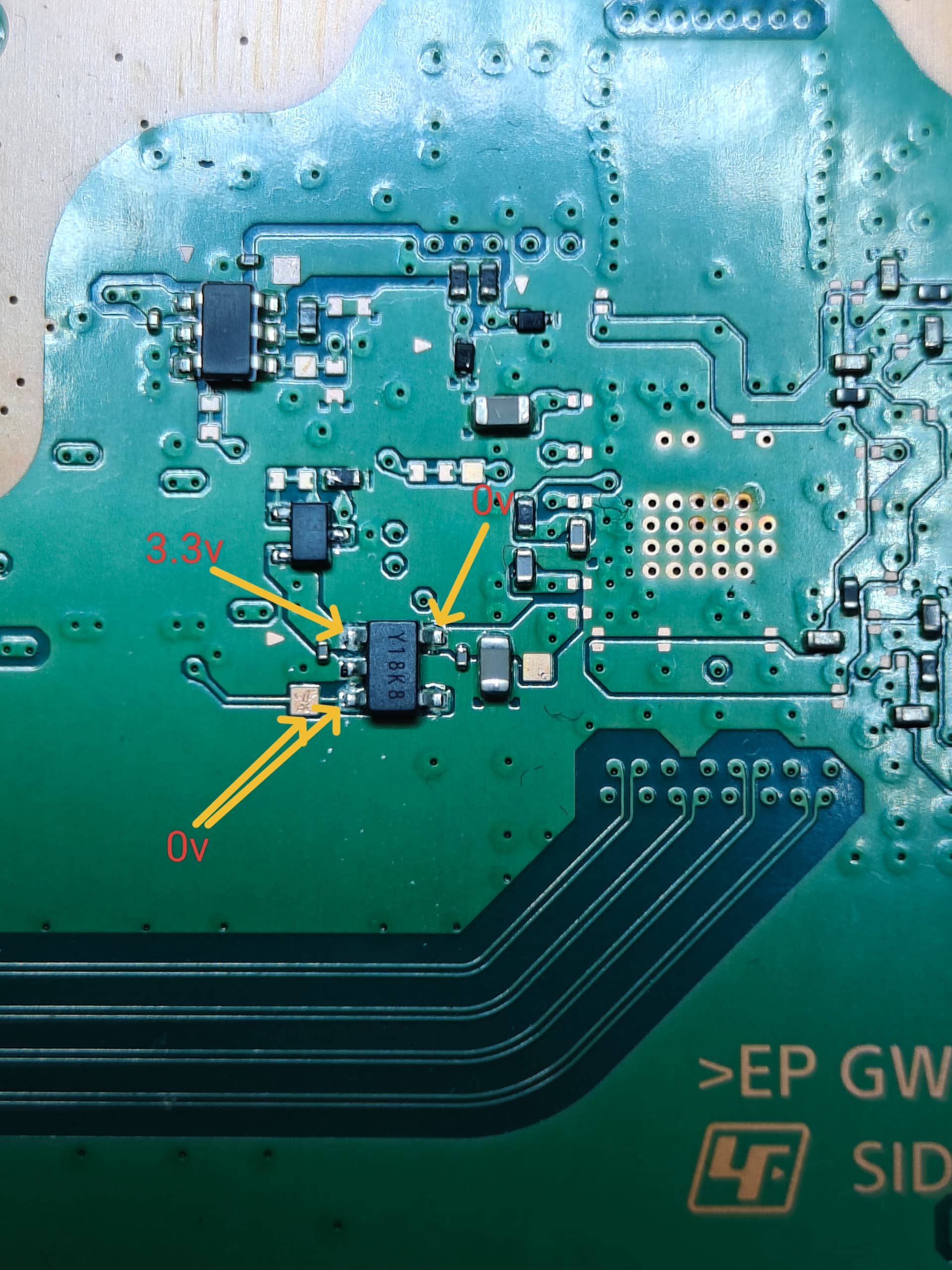

In this spot the 1.8V are there if power on. The 3.3V on the lower leg/pin is the enable, if switched on the 1.8V will be generated.
I give Up in this one.
But on a other Board i have Shorts under WiFi IC
But Not in the 1.8v rail coming from f7002.
I think Its the 3.3v rail but i dont know where IT comes from
thats 020 or 010 board you have?
Forget to mention Its a 020
3.3v standby gens from stepdown ic on the left side of Southbridge, next to the 2x rear USB-A power switch

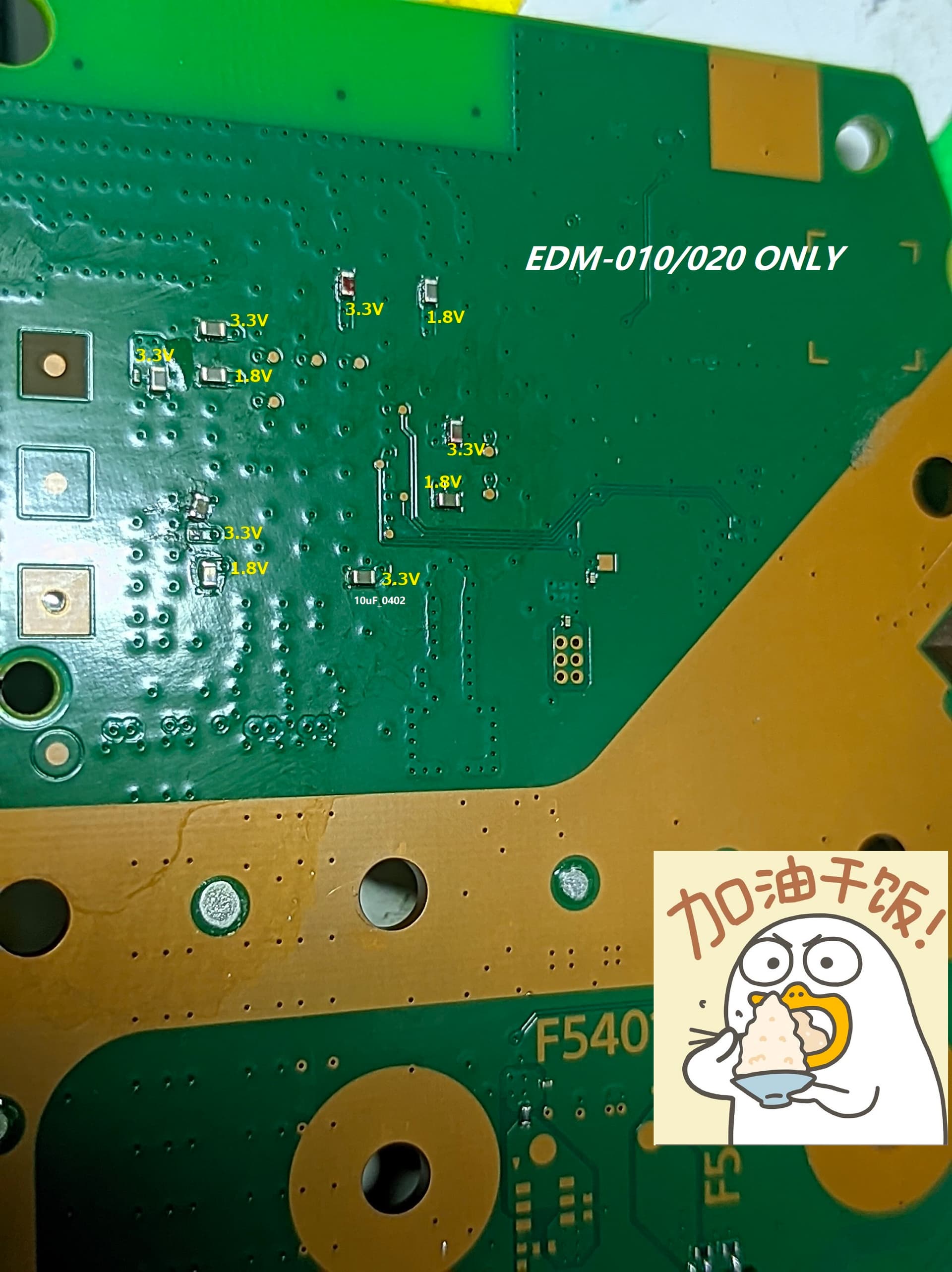

Im Not at Home rn but this area with the Little cap IS shorted and the other 3.3v also. The 1.8v are fine.
So the ps5 is working again

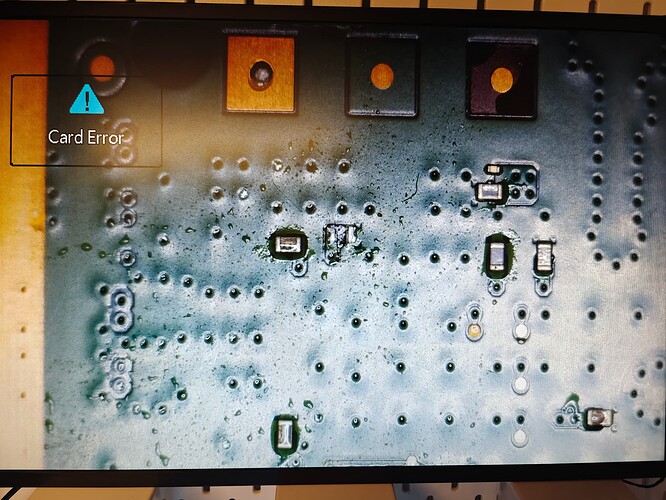

Desolderd the First one and the short is gone
New one is a 10uf 6.3v 0402
Big thanks for your Help
i have a edm-020 I get no beep or power I am not getting 3v no where on the board that i can find if you could help be much appreciated
What resistance to ground or diode reading on 3.3v standby?

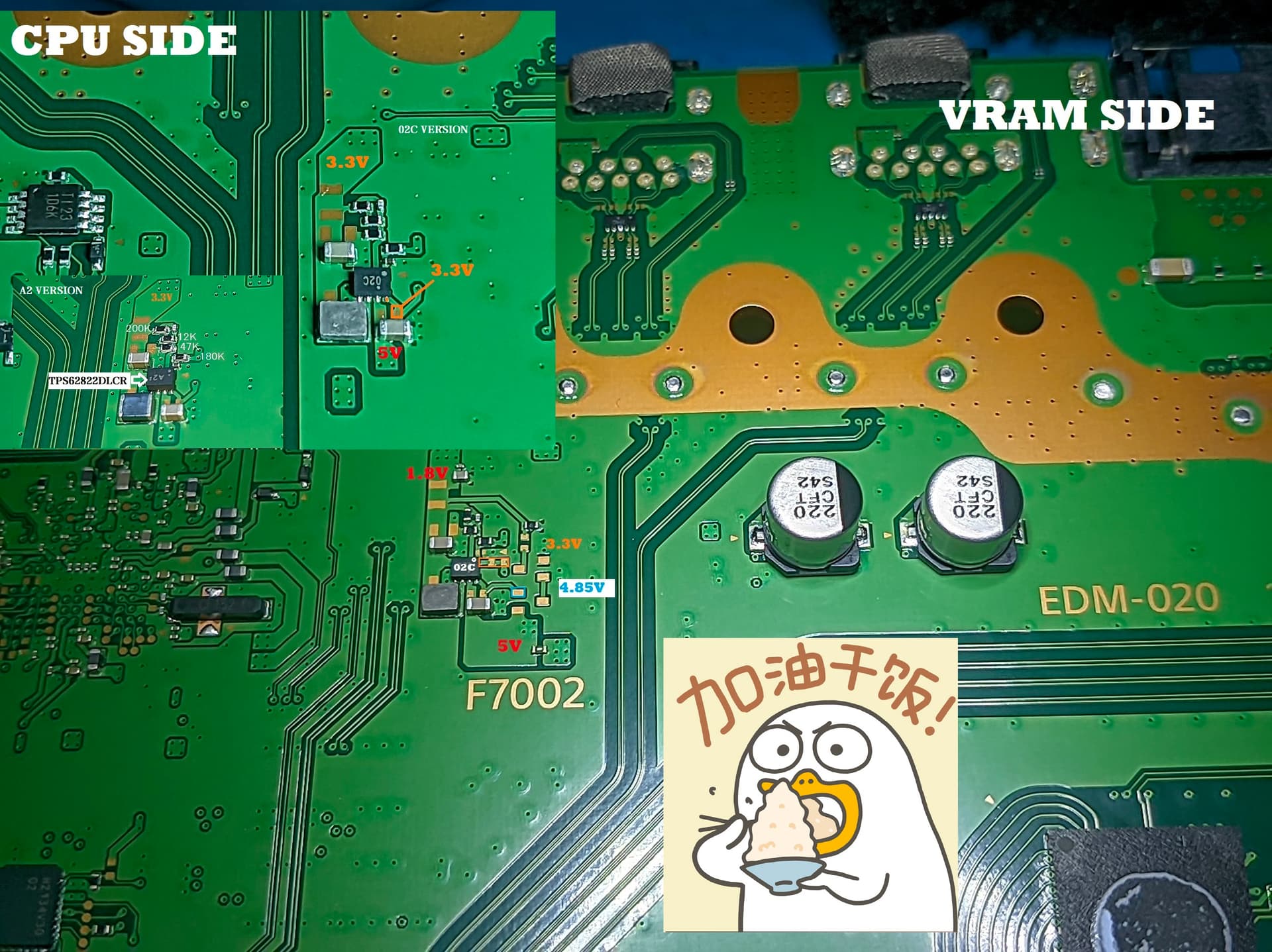

You should have 1.8v from F7002 area and the other side near southbridge having 3.3v standby. check those area and report back
I sure will thanks… for replaying back

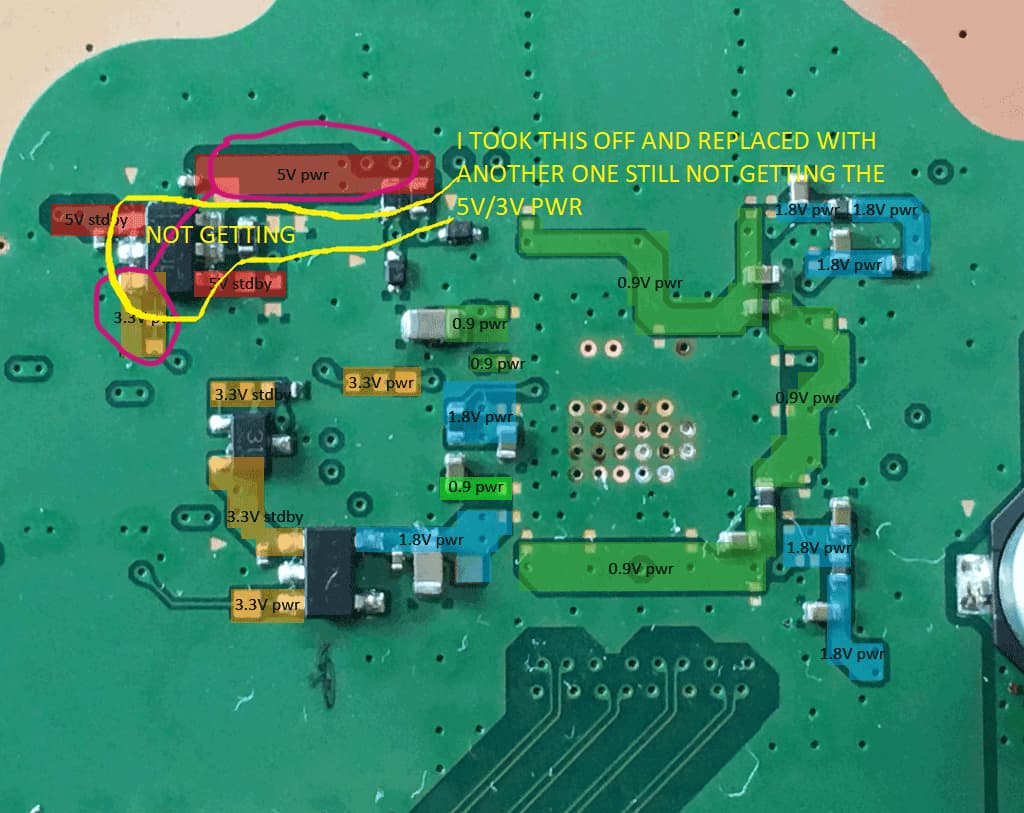

i get 5v and nothing eles
can anyone help with with this to look at this is what am getting it beep no light
80871055" , "SSD Banks IO Error Between SSD Controller
