Hi guys , this error are fixiable
Some ideas

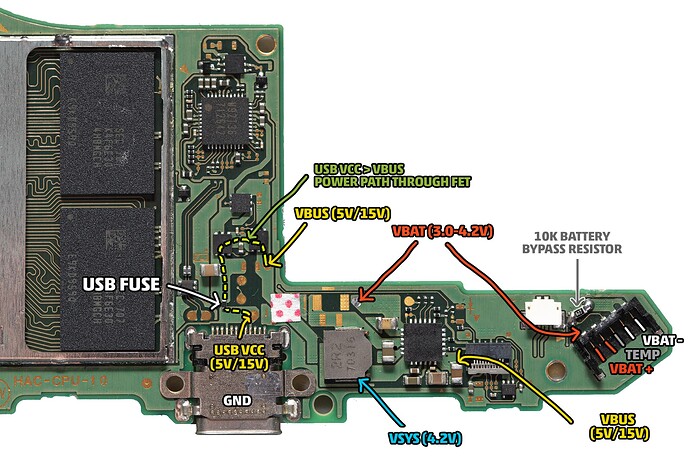

![20240701_193217|690x388]
(upload://aFFteDc4CbmGF85yLxdTNCEHLtK.jpeg)
Hi guys , this error are fixiable
Some ideas
![20240701_193217|690x388]
(upload://aFFteDc4CbmGF85yLxdTNCEHLtK.jpeg)
Still haven’t fixed it. Thinking of changing the PI3USB chip, but I’ve been procrastinating.
Is for dock functionality, so unless you’ve identified a fault (?) then a swap would be pointless. As per the link provided, the issue tends to lie with either bad M92, fake M92 IC, bad install, and/or potentially even bad USBC port (which is perhaps what caused the problem to begin with)
I changed the M92 chip but maybe it’s fake? I got the M92 off Amazon. What’s a good source for a functioning M92 chip?
Hard to verify, best to look a reviews on aliexpess but even then you can get fooled… best practice is to pull from a known good donor and then use the IC from third party source after to confirm
Try 3 times m92. 1 chip testesting in other console is working fine.
Fast charge, no problem. 15v 0.49 mA.
This consola are stock .
D+ D- in measures detect bad continuity line ,
filter EMi burned , replace smd component y read resistance
Filter EMI side to side D- 2.2Ω D+ 2.3Ω
Red probe tester in GND
Black probe tester in DATA.
D- 61 kΩ D+ 68 kΩ
Diode mode D- 0.78mv D+ 79mv
Red probe tester in data
Black probe tester in GND
D- 19 kΩ D+ 17 kΩ
Diode mode D- 1.2v D+ 1.2v
compare measurements with another console, and they are diference
Red probe tester in GND
Black probe tester in DATA.
D- 11 kΩ. D+ 11 kΩ
Diode mode D- 0.79 mv D+ 0.79 mv
Red probe tester in DATA
Black probe tester in GND
D- 52 kΩ. D+ 25 kΩ
Diode mode D- 1.3v D+ 1.3v
sorry for my bad english
picture bad filter EMI before change
Is this a bad SOC problem? I just changed the M92 again with no change. Replaced one of the SN1 chips, the very bottom left with no change. I’m guessing it’s still M92 related, but how? I traced voltage to pin 21 on the M92 because that’s what I think turns on the charging circuit, but that’s putting out 0.3v. Diagram shows the pin 21 as S2_DRV_G1.
