Help identify this component please

Nintendo Questions Nintendo Switch
1

Please be advised, I have used Rich’s Image because my camera is playing up at present and struggling to work out how to convert an Apple photo.

I have an issue with USB-C port. I have replaced it and fairly confident the port is installed satisfactorily, but when I measure one of the pins it is not measuring correctly.

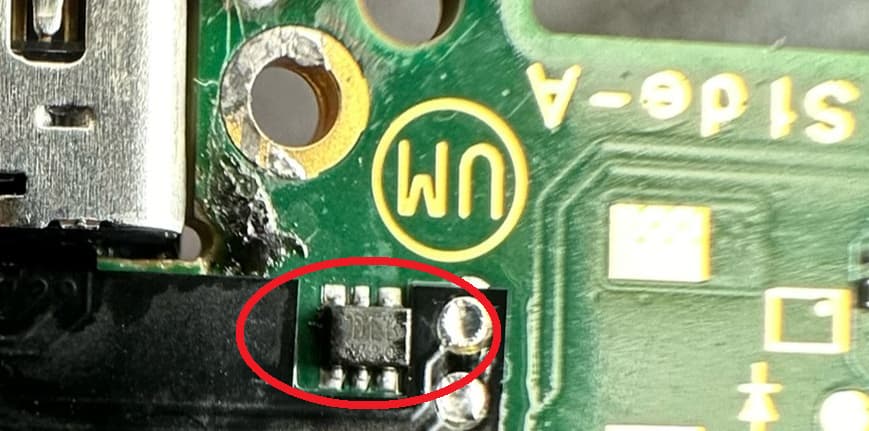

The only part I can see holding this measurement down is the one circled in Red.

I would like to know what this is so that I can pull a datasheet, and also find a replacement…
Unless someone has any other thoughts please

Nintendo_Sw_OLED_UnknownComponent
Nintendo_Sw_OLED_UnknownComponent869×431 53.9 KB

2

remove this esd ic and check your reading before ordering new chip. Switch could work normal without it

3

@jkyoho Thank you for this info. I removed this IC and that pin is still reading 1.6… instead of 494 in diode mode. So it can’t be that component.

Yes I know a lot of people don’t agree in diode mode but Calvin has created some amazing diagrams.

4

you have red prob on ground when measuring 1.6?

5

Apologies for the delay in my response.

I have currently removed the M92 chip as I was testing for shorts around the chip…all shorts are cleared.
Whilst M92 is off I have taken 2 readings 1V8PDR = 1.9KOhms and 3V3PDR 5.8KOhms

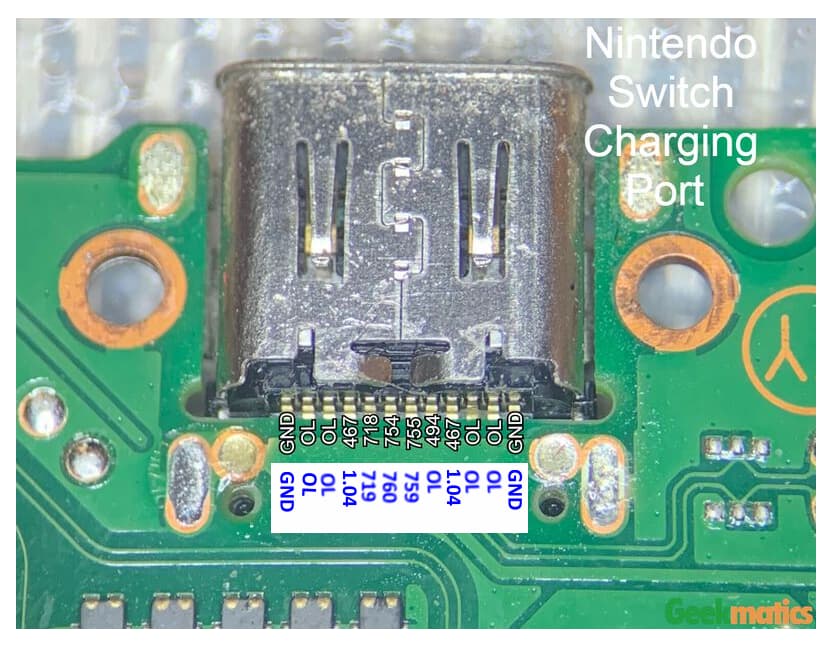

Lastly, in regard to your question, I have taken some new reading around the USB-C port with that small ESD IC removed, and still with M92 off the board
NOTE: original image taken from Geekmatics

USB-C_My_DiodeMode-readings-M92=Off-ESD-IC=Off
USB-C_My_DiodeMode-readings-M92=Off-ESD-IC=Off838×657 80.8 KB

6

why would you compare the reading when m92 is off the board?

7

@jkyoho that is a very good question. I am sure I read somewhere on this forum about removing the M92 and then taking the readings.
I might have dreamt it though haha

I am going to re-install M92 and then take some further readings later hopefully.
