Help Please! Switch OLED dead after Picofly installation!

1

Hello,

I tried to install the Picofly chip on my Switch OLED. Everything went well until I reassembled it and found out it won’t boot at all. It draws about 0.45A with a 5V charger, but there’s no battery symbol.

I removed the chip and all wires, but it still has the same symptom. I checked the BQ and M92 chips, and there are no shorts. I also checked the PMIC chip in diode mode, and all readings are within the expected range.

Is there anything else I should check?

Thanks in advance.

2

pictures of the solder work you have done on the board

3

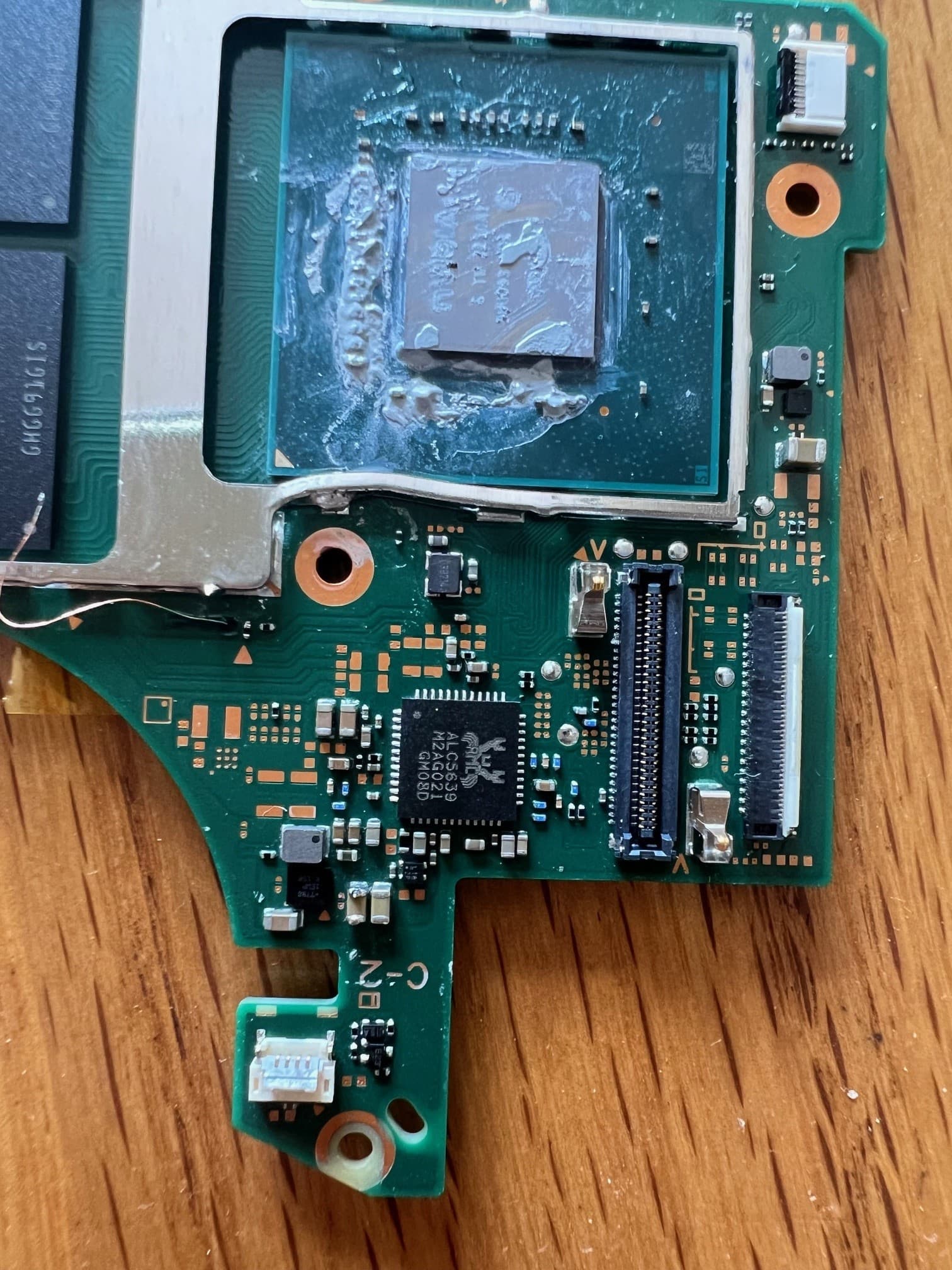

Here are the photos:

11
111512×2016 378 KB

22
221512×2016 352 KB

77
771512×2016 297 KB

The first photo is before the chip been removed.
