Help! PS5 1000 series NO Video

PS5 Questions PS5
1

Hello all! New to the forum. I have a PS5 disc version did an HDMI replacement but still no video. I have seen some different sites with diode measurements on the pins. From my breakout board this is what I’m reading. From what I have seen 18 and 19 are out of whack, can anyone recommend what might be the culprit.

  1. .814
  2. GND
  3. .814
  4. .813
  5. GND
  6. .814
  7. .814
  8. GND
  9. .814
  10. .813
  11. GND
  12. .814
  13. .530
  14. NC
  15. .520
  16. .520
  17. GND
  18. .447
  19. .557

Any help would be appreciated!

2

The readings above pin 12 seems to be all a bit off.
Are the voltages present?

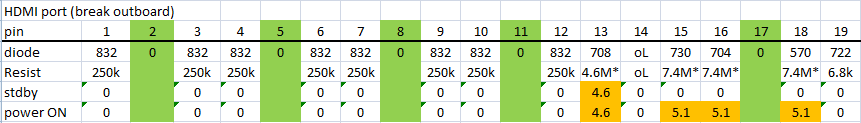

HDMI_port_readings_all
HDMI_port_readings_all861×123 4.87 KB

3

Calvin thanks so much for the reply! I know I have 5v on pin 18 but have not checked the others. I will check the other voltages and post them in the morning. Thanks again!
