I need help to fix no power Switch lite

Nintendo Questions Nintendo Switch Lite
1

I got Swith lite with no power

When I charge it I see around 15v but power is not working.

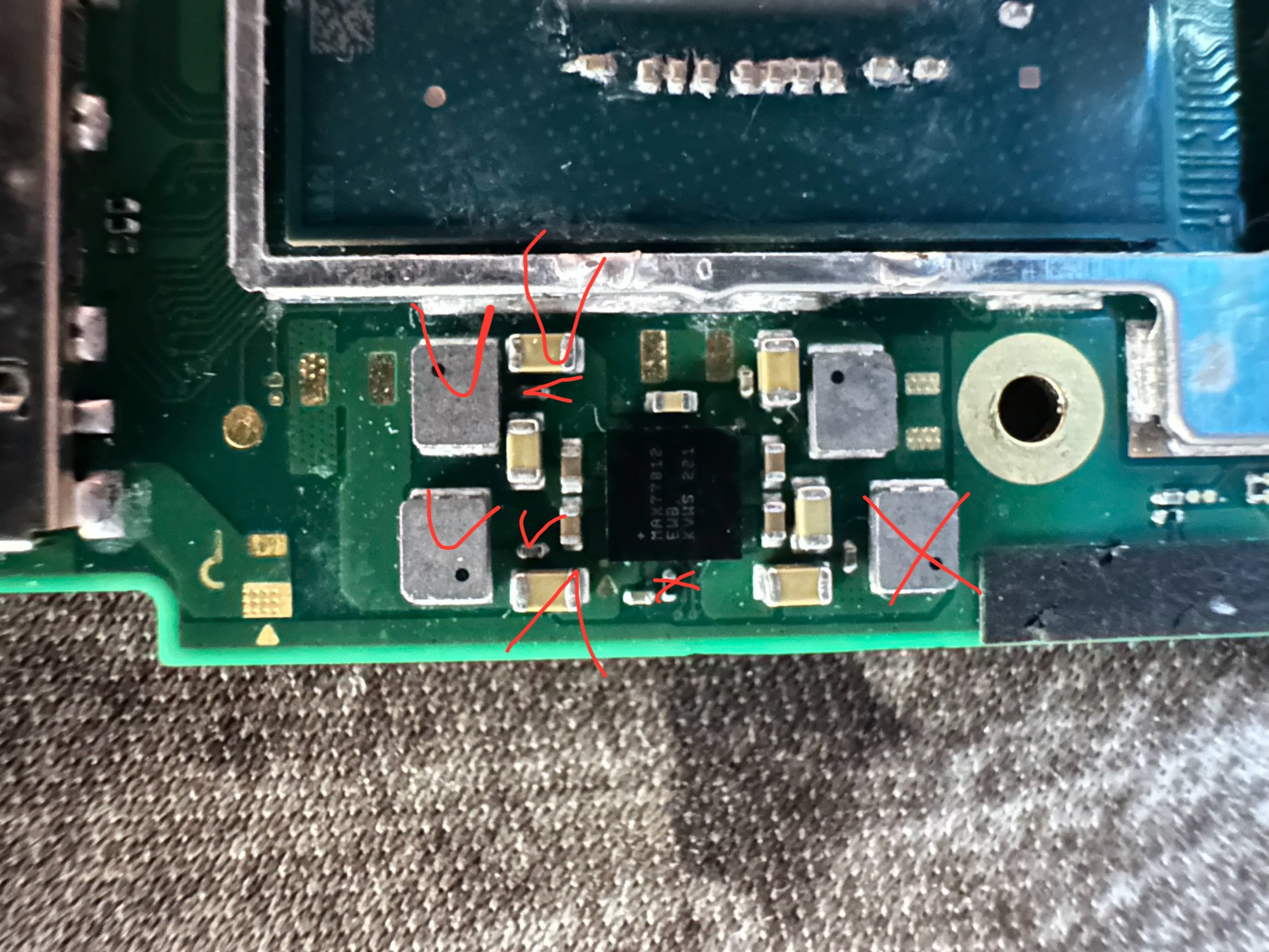

So I teardown it and do the short test and I found several short point around MAX77620h and MAX77812 chip

What should I do? Do I need change MAX77620h, MAX77812 or both?

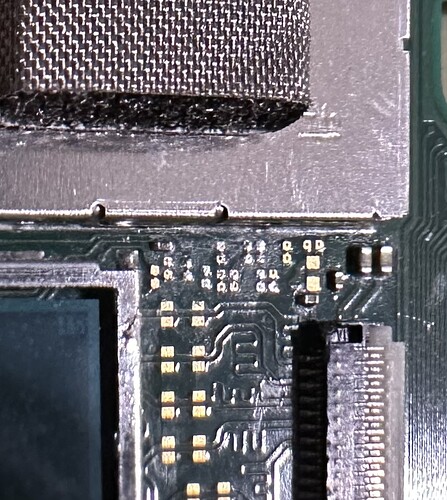

Here is the short point

3

IMG_5591
IMG_55911645×2193 753 KB

IMG_5597
IMG_55971645×2193 598 KB

4

resistance to ground at these points? probably not shorted :slight_smile:

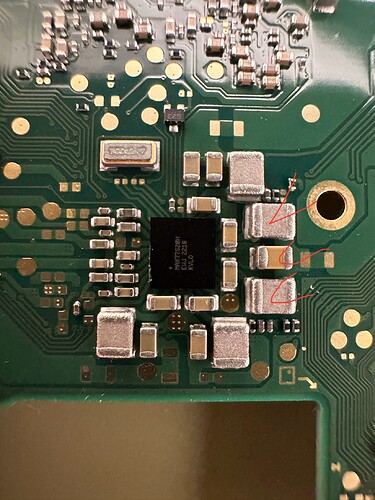

Though the CPU/GPU reg IC below the SoC does look like it’s potentially damaged, can you zoom in on that IC so I can see? might just be the top coating so you might be fine.

5

Are thoes right?

IMG_5659
IMG_56594032×3024 1.9 MB

IMG_5660
IMG_56604032×3024 1.73 MB

IMG_5661
IMG_56613024×4032 1.87 MB

6

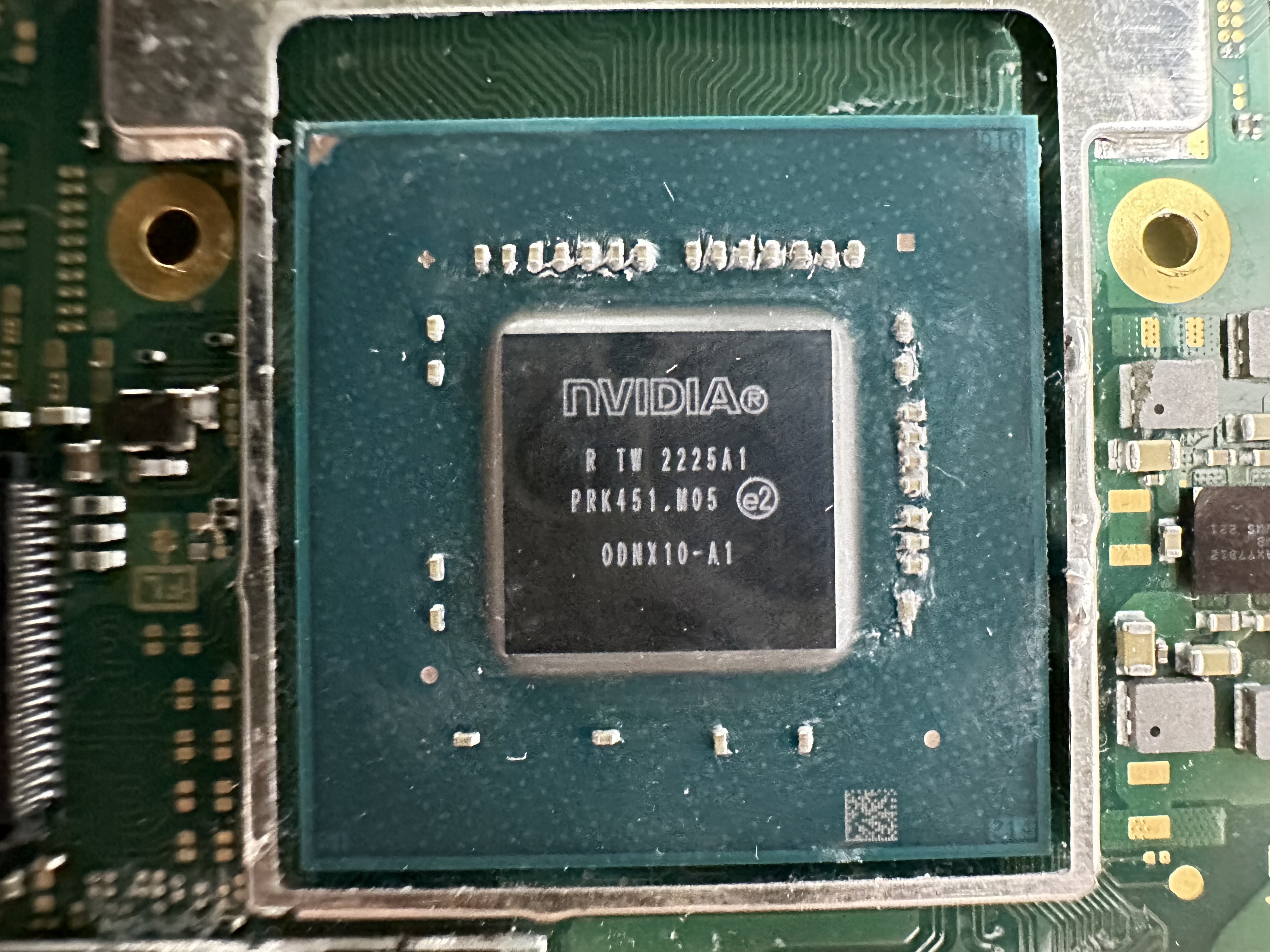

image1920×1440 286 KB

suspicious, might be just another failed to mod samples

7

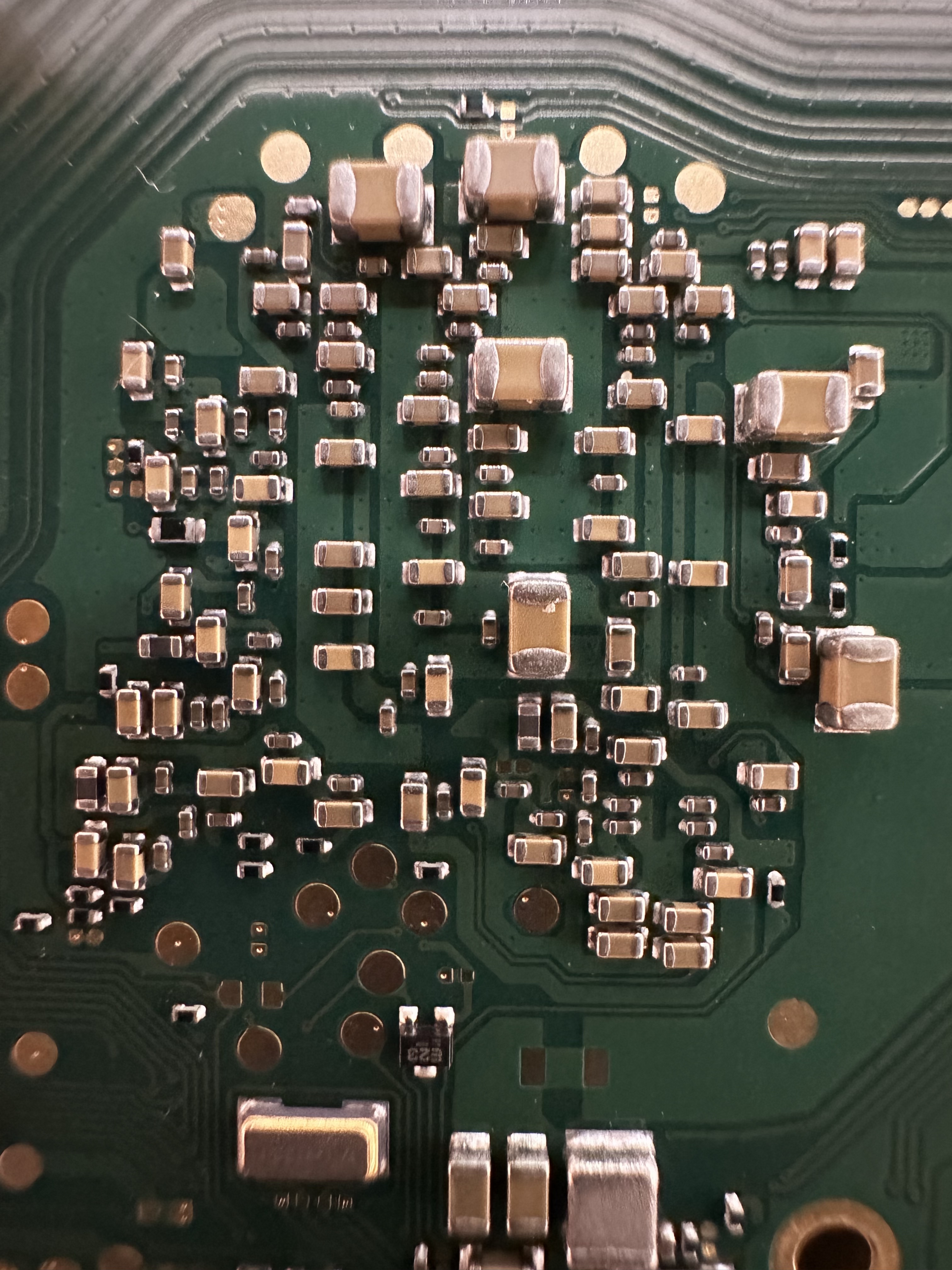

agreed, and also a chunk out the inductor and signs somone has been monkeying around with the CPU/GPU reg. Looks like it’s been through the wars…

cb67dcebac45435feb328ab0f65381926032dcb5
cb67dcebac45435feb328ab0f65381926032dcb51920×1440 285 KB

8

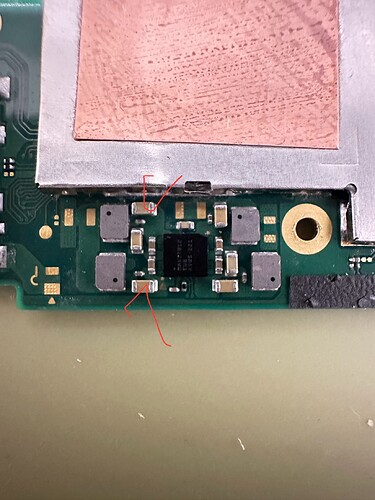

IMG_5664
IMG_56643024×4032 1.58 MB

IMG_5666
IMG_56664032×3024 1.2 MB

I took photo again. I don’t know exactly what is happended it, becasue I bought it used one.

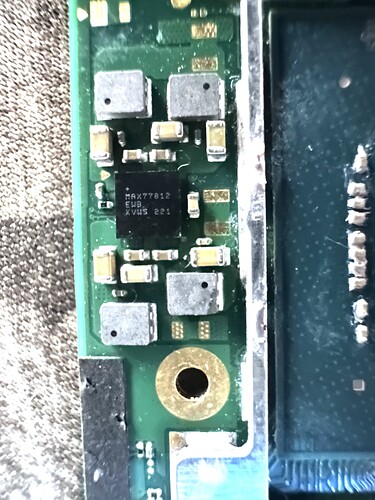

Definitely I can see MAX77812 and around grey component are damaged.

So I have a plan to replace MAX77812 and grey component.
Here is my question what the grey compnent name is qnd how can I buy new one??

And do you think any other problem?

9

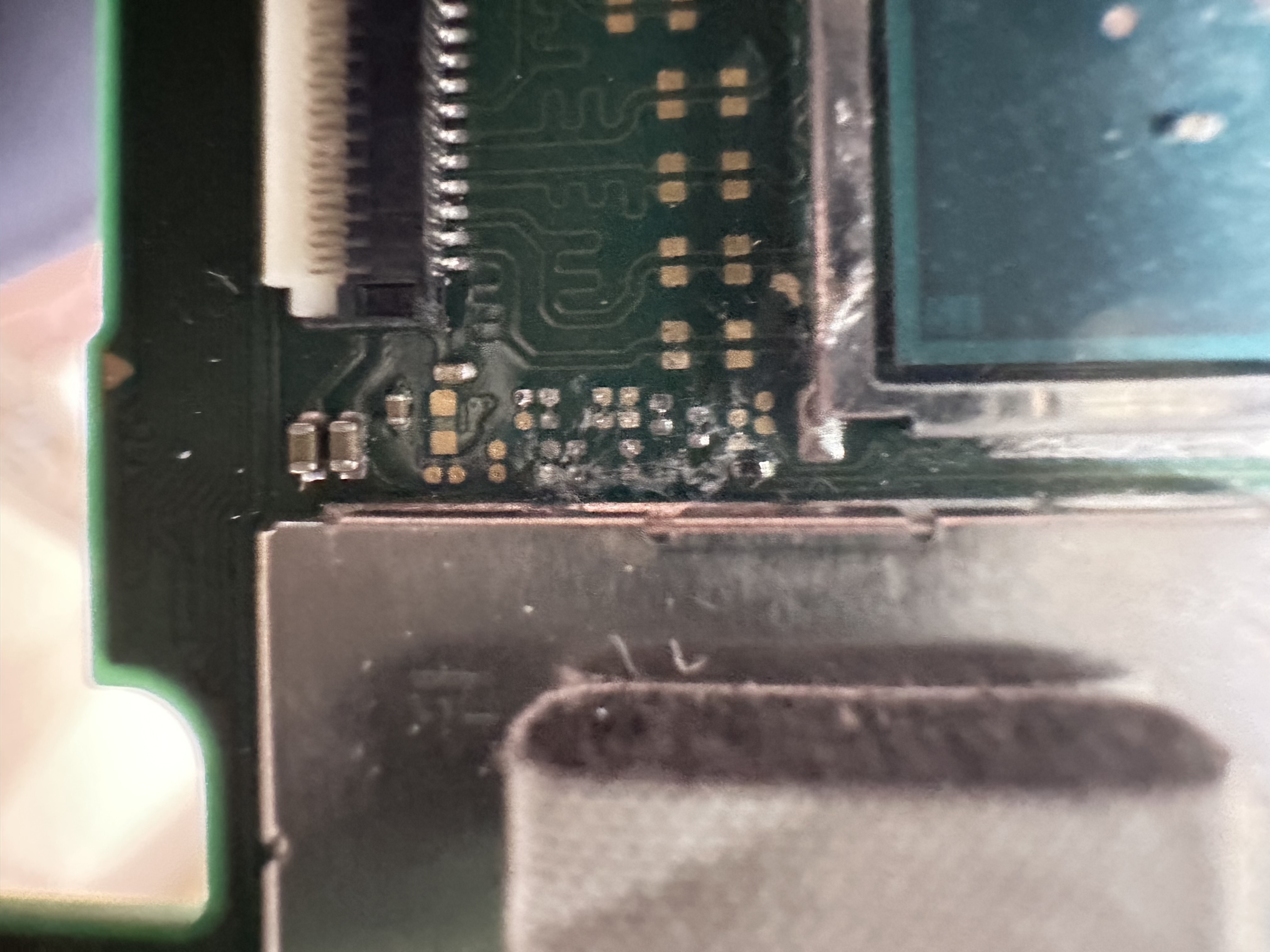

I would clean up those test pads and check reading before doing any replacement

10

IMG_5693
IMG_56931066×1192 335 KB

I tried clean it. then how can I check it??

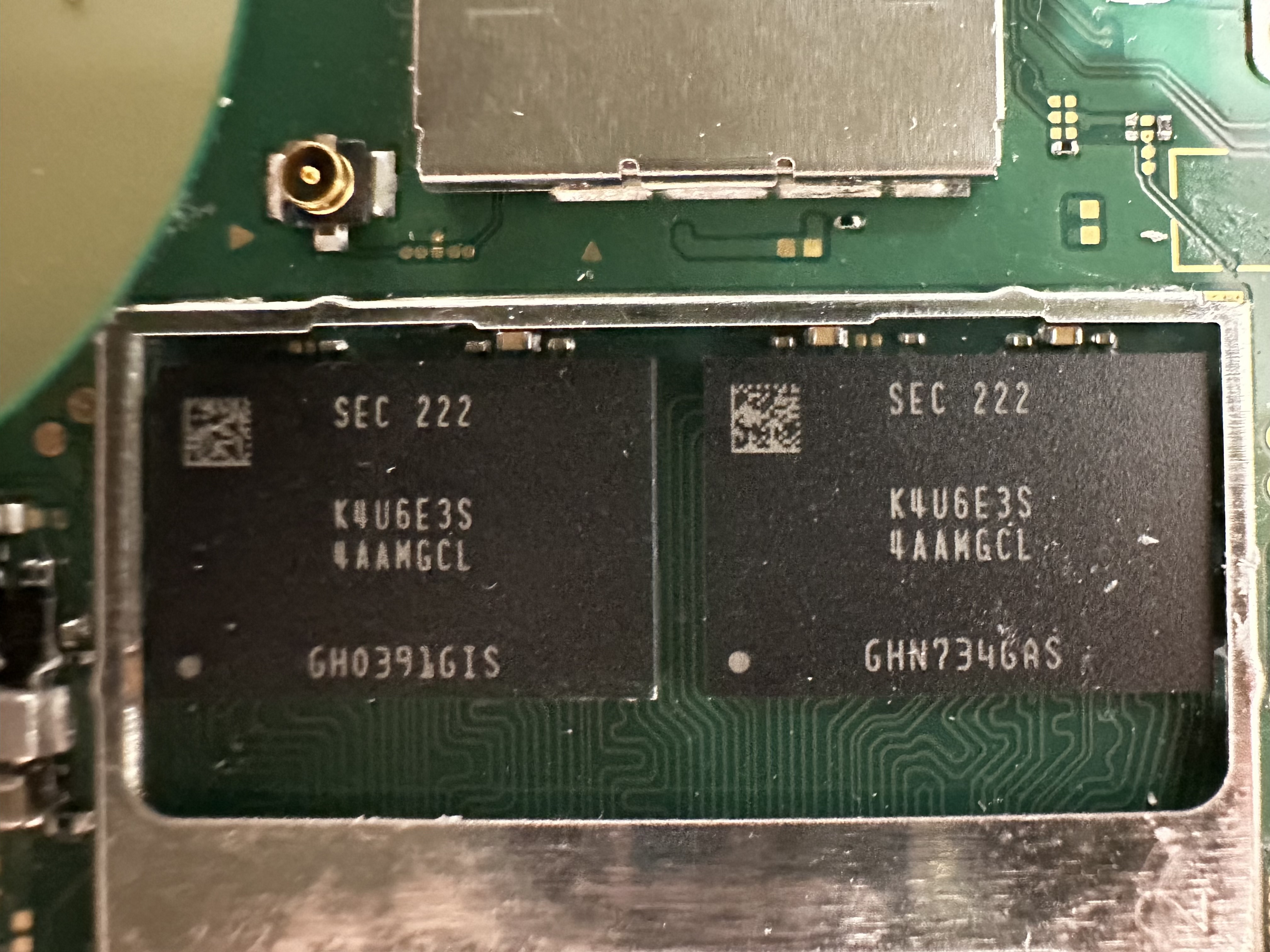

ah and I found another point, a resistor is taken out near ram. :frowning:

IMG_5698
IMG_56981397×1645 503 KB

11

pads look good, you could measure diode mode reading but not necessary in this case.

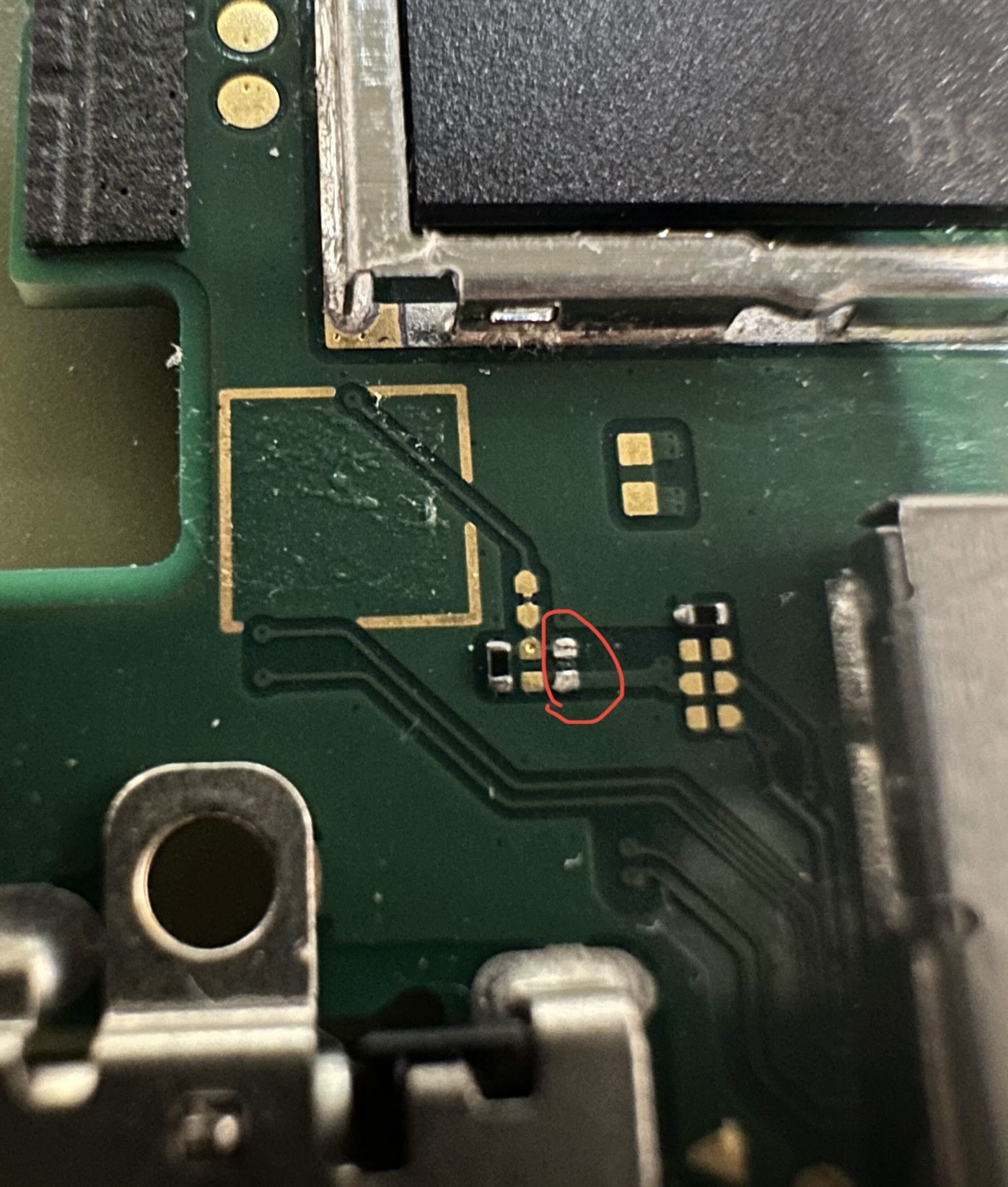

The missing resistor is likely a 10k ohm 0201 size, I dont have lite board but v1/v2 has 10k ohm at the F7 pin connected to wifi chip.

12

I got taken out resistor, because it is taken out when I brused the board.

so I’m gonna try to fix it

  1. to replace MAX77812
  2. to replace the grey component
  3. to solder a missing ressitor

here is my question,

what the component name is? and where is it sold?

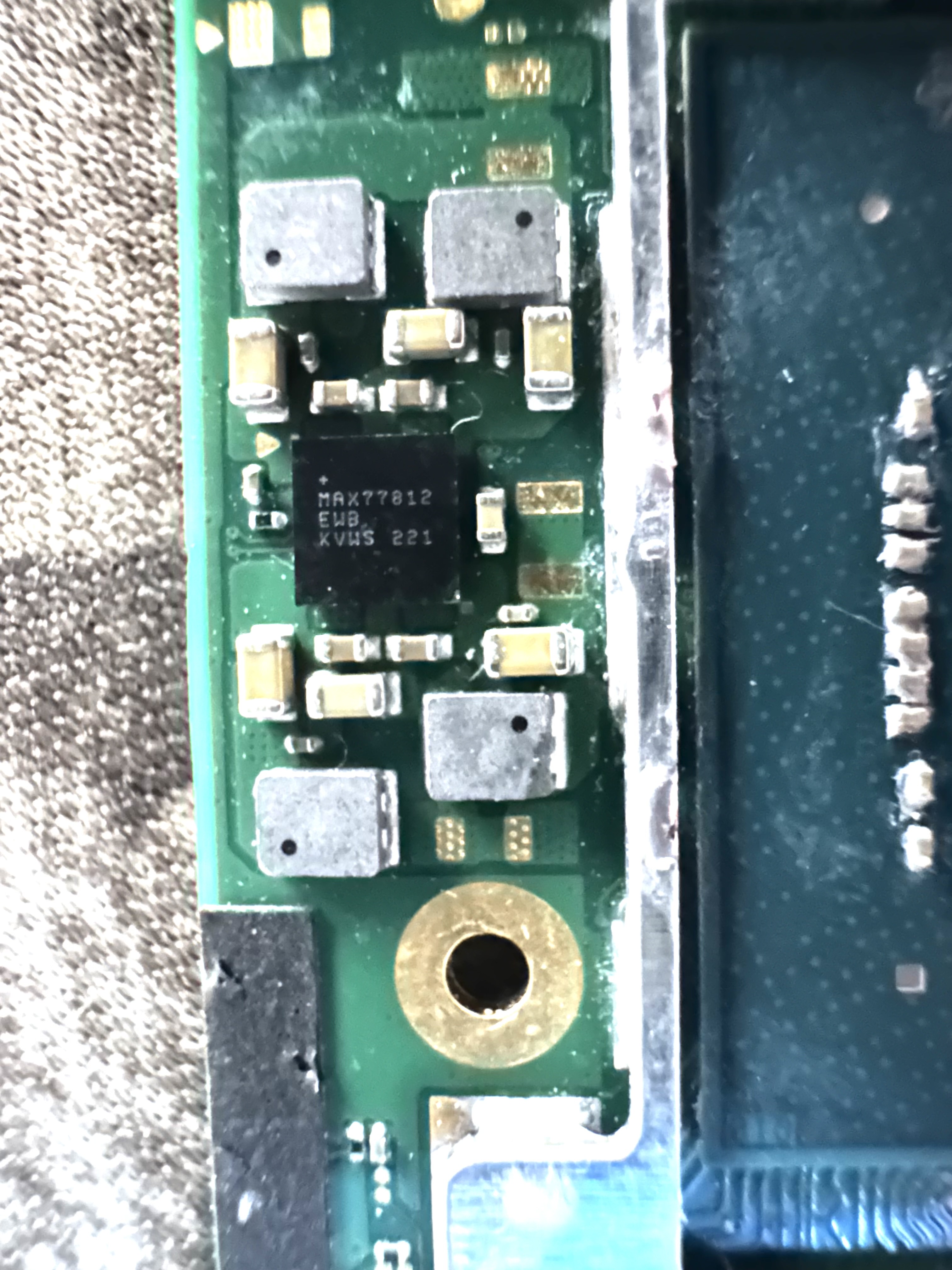

IMG_5664
IMG_56641645×2193 579 KB

13

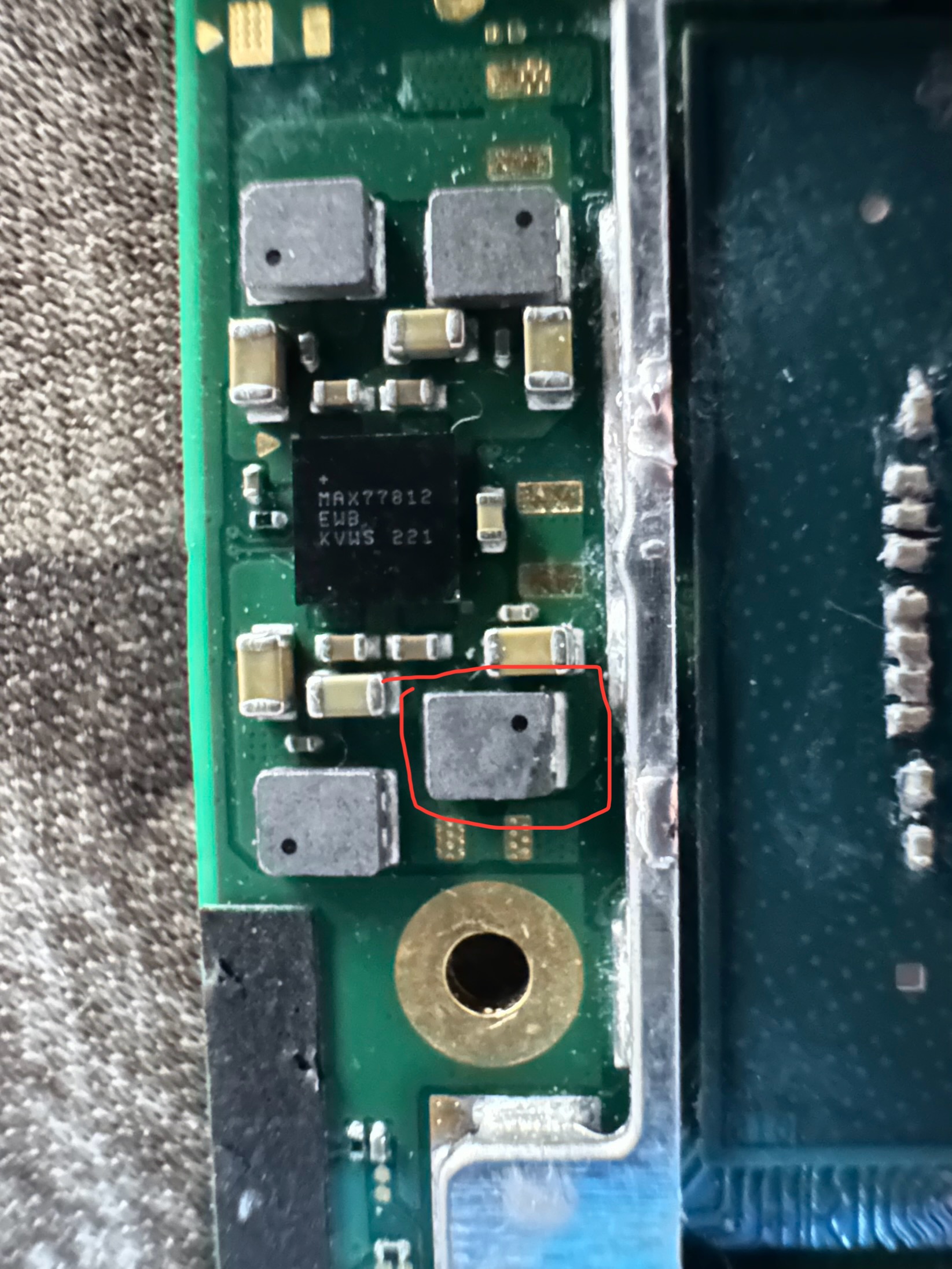

Grey components called inductor. The value and recommended part number can be found in Max77812 datasheet. You could buy them from SMD components distributors (i.e Mouser/Digikey)

14

Your max77812 seems just the upper skin came off, the marked grey component/inductor looks ok to me. You can check the inductor in continuiyt mode and it should beep from left to right

15

Really?? Then what should I do?? or How can I find where is the problem on logic board?

Give me some advice please.

16

image424×502 74.6 KB

confirmed with lite came in today.
For troubleshooting board issue, you need to understand what stage the board been stuck/hung on, and what voltage is missing or what current draw from Vsys(battery, not charge port)

17

Thank you for your help

I checked thoes

IMG_5663
IMG_56632193×1645 697 KB

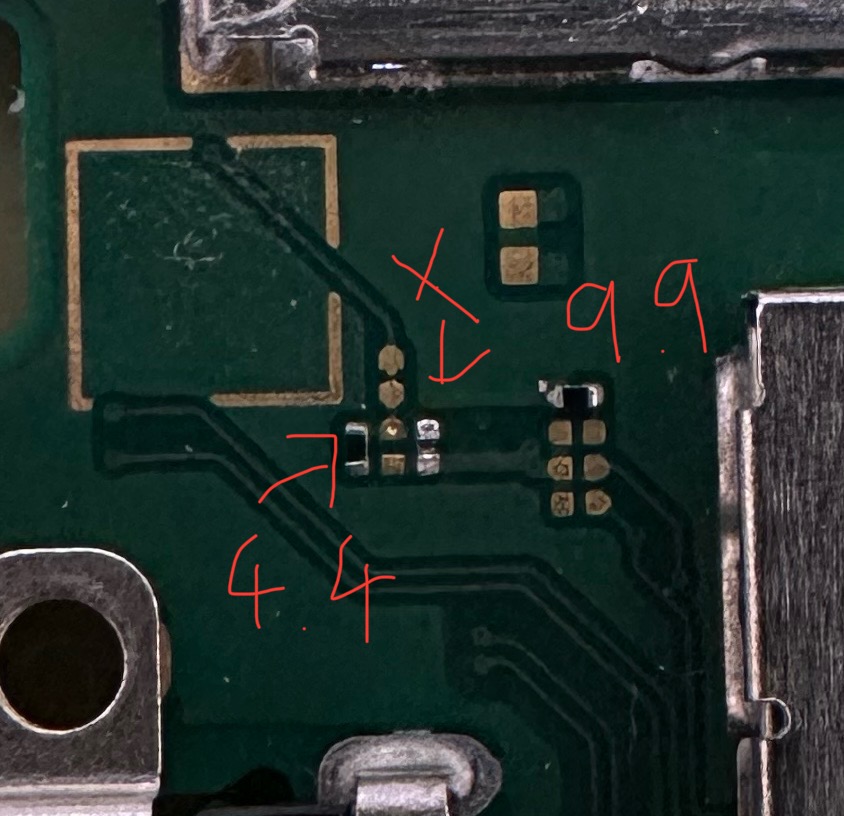

the components beep sound left to right are V
and the components no beep left to right are X

IMG_5810
IMG_5810844×816 143 KB

and I checked ohm.

left one is little lower than your number
and middle one of course I can’t checked it

18

满足以上条件请测试USB-C口以及M92T36 芯片谢谢

19

I use translator and I will check M92T36.

Thank you.

20

Acorrding to advice, I’m gonna check M92T36. However I have a question. What is the current value resistance’s ohm around M92T36?

I found several images but it’s all Switch, NOT Switch Lite.

I’m a beginner, so I can’t understand datasheet.

and should I check volts from resistance?

21

No, you should check what voltages are present at this point around max77812.
