Nintendo switch no power ON, PI3USB chip burned, one path burned and a color filter

Nintendo Questions Nintendo Switch
1

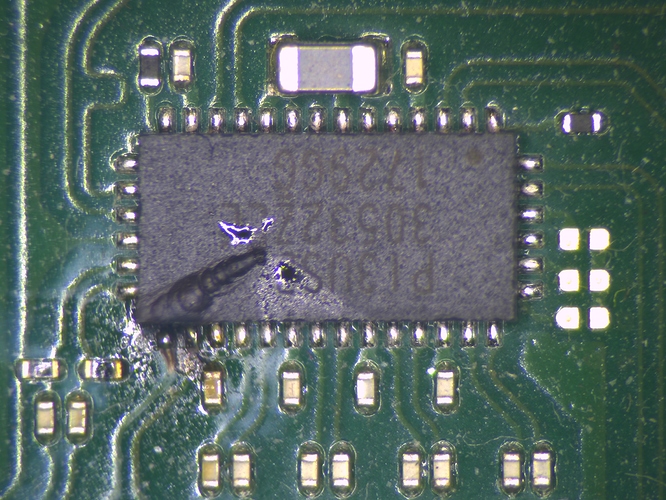

Nintendo switch with no video signal and no power ON. The PI3USB chip burned with a burned path and a color filter. Replaced the chip with a new one, remade the destroyed route and burned filter. Functional now.

IMG_0126
IMG_01262592Ă—1944 2.44 MB
IMG_0127
IMG_01272592Ă—1944 1.34 MB
IMG_0129
IMG_01292592Ă—1944 1.56 MB
IMG_0132
IMG_01322592Ă—1944 821 KB
IMG_0133
IMG_01332592Ă—1944 1.9 MB

1 Like
2

great job! usually the coil gets open when that happens…! seems like that’s not your case…!
