No power up, 15V 0.18A power draw, shorts near M92, MAX77620 and BQ - Fixed

Nintendo Questions Nintendo Switch
1

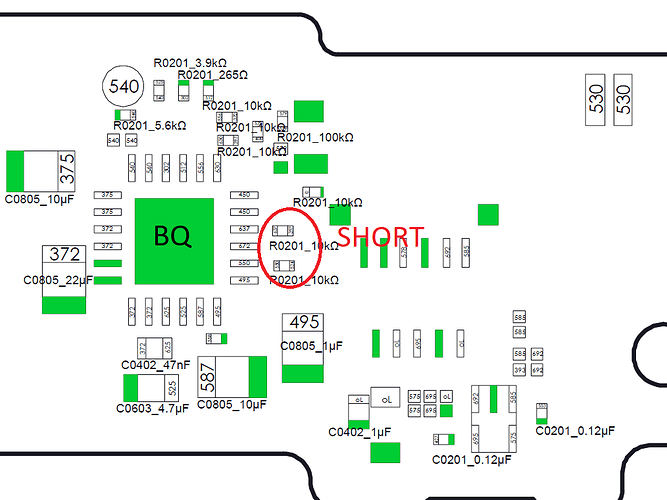

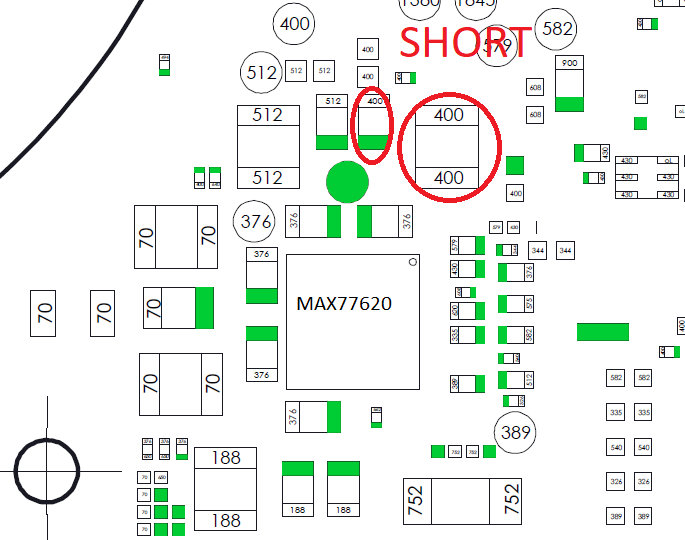

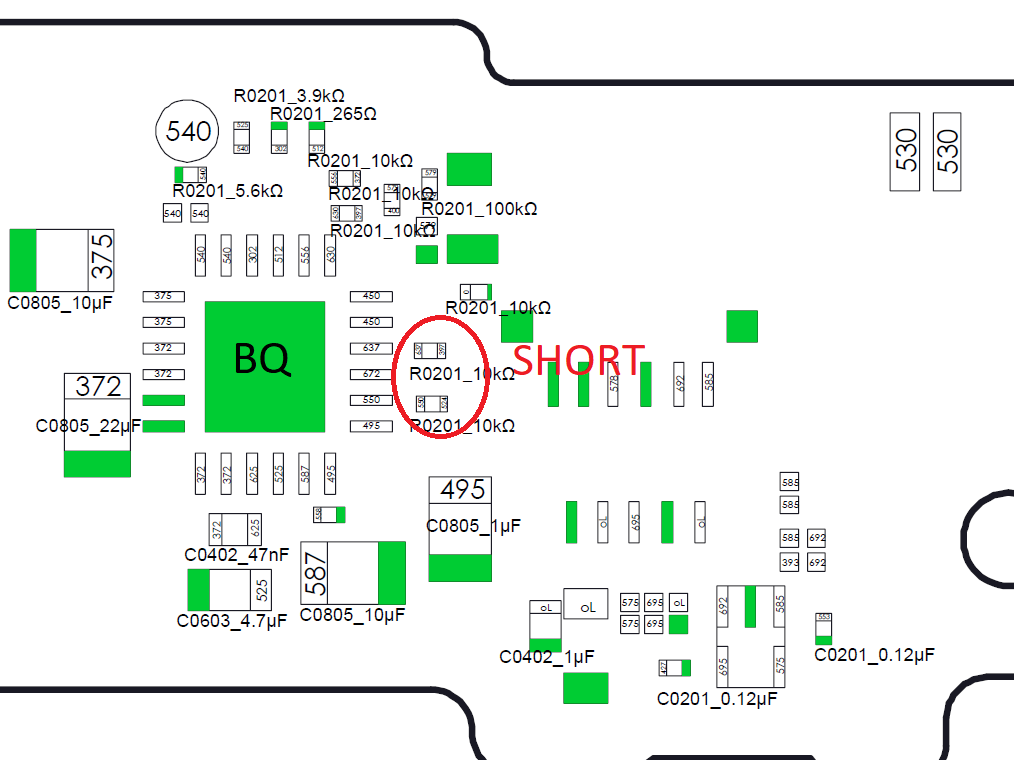

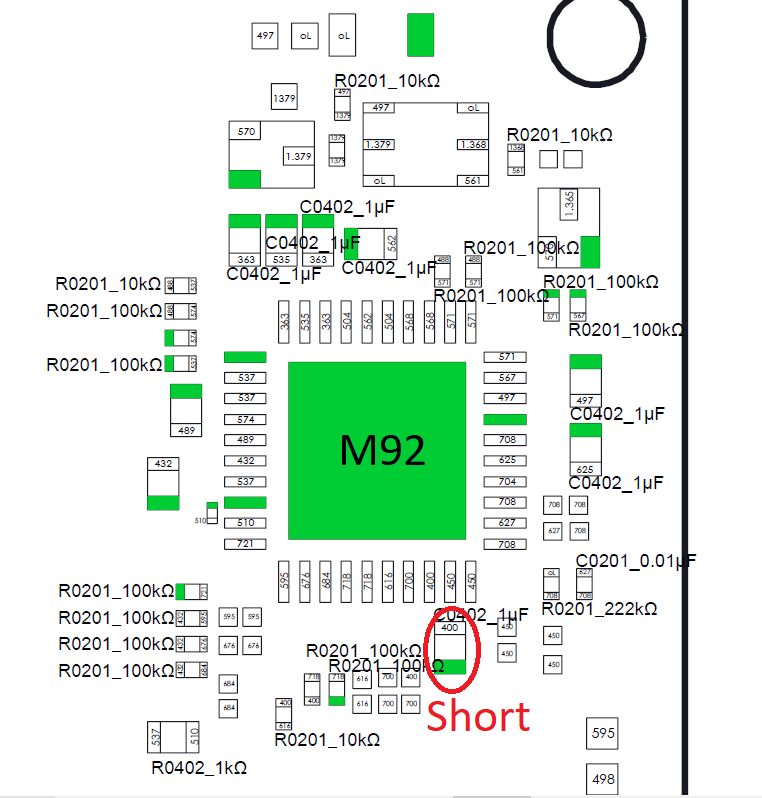

I had an issue yesterday where a switch v2 wouldn’t turn on. It was drawing 0.18A at at 15V and I found a short below the M92, shorts around the MAX77620 and the BQ chip, as well as an open line below the P13 chip. Removing the LCD FPC cleared all of these.

The problem ended up being a short in the LCD FPC connector so I decided to make this post to help anyone in the future.

58acea0d60f87969e2975f08f2618f759db0abc2
58acea0d60f87969e2975f08f2618f759db0abc21014×760 54.5 KB

94160c069bbdd2009d9c10a01e0c70861cfce87a
94160c069bbdd2009d9c10a01e0c70861cfce87a685×540 35.2 KB

de84081acb6e284396998763aa4db608a27b0ae5
de84081acb6e284396998763aa4db608a27b0ae5978×747 34.6 KB

90372d7ee30f155be3aa66cd8a85008904cb634c
90372d7ee30f155be3aa66cd8a85008904cb634c762×798 57 KB

2

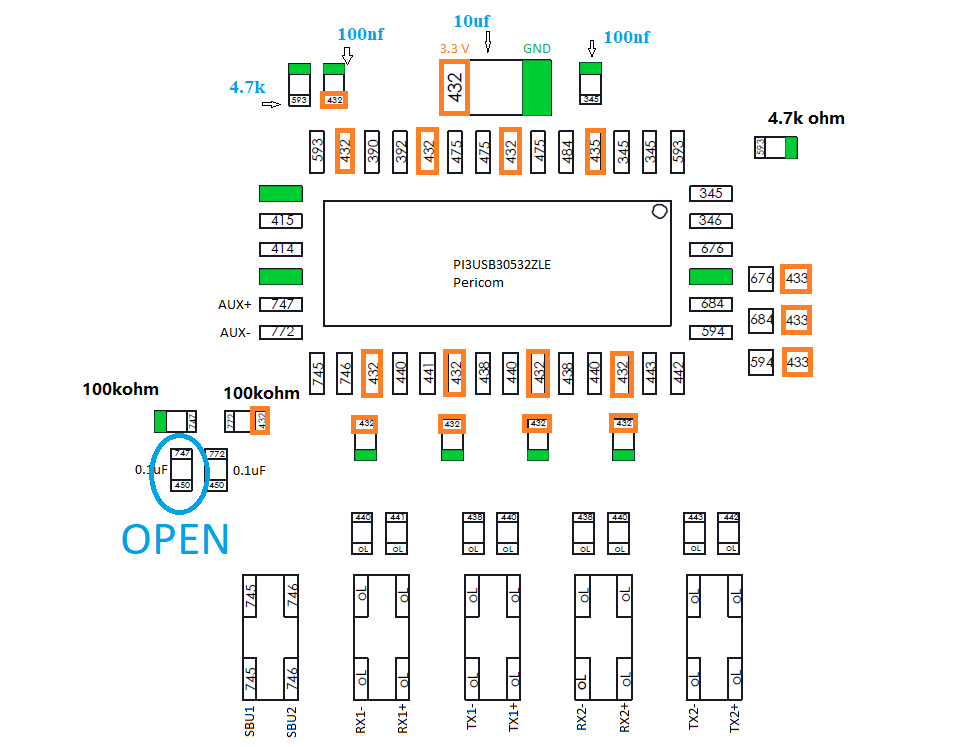

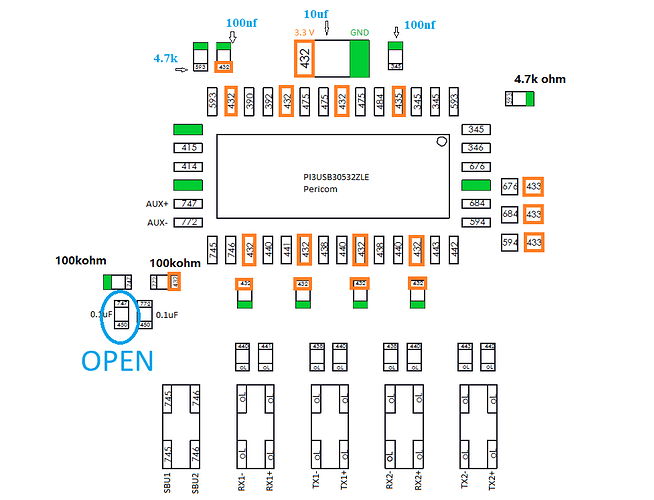

Update. The open circuit near the PI3 was caused by an unrelated issue. It connects to pad under the soc that was not making contact with the soc. Reflow fixed that.
