Switch Lite USB-C Torn Pad A8

Nintendo Questions Nintendo Switch Lite
1

While attempting to replace my USB C charging port I ripped pad A8. Does anyone know where I can wire that pin to on the board?

2

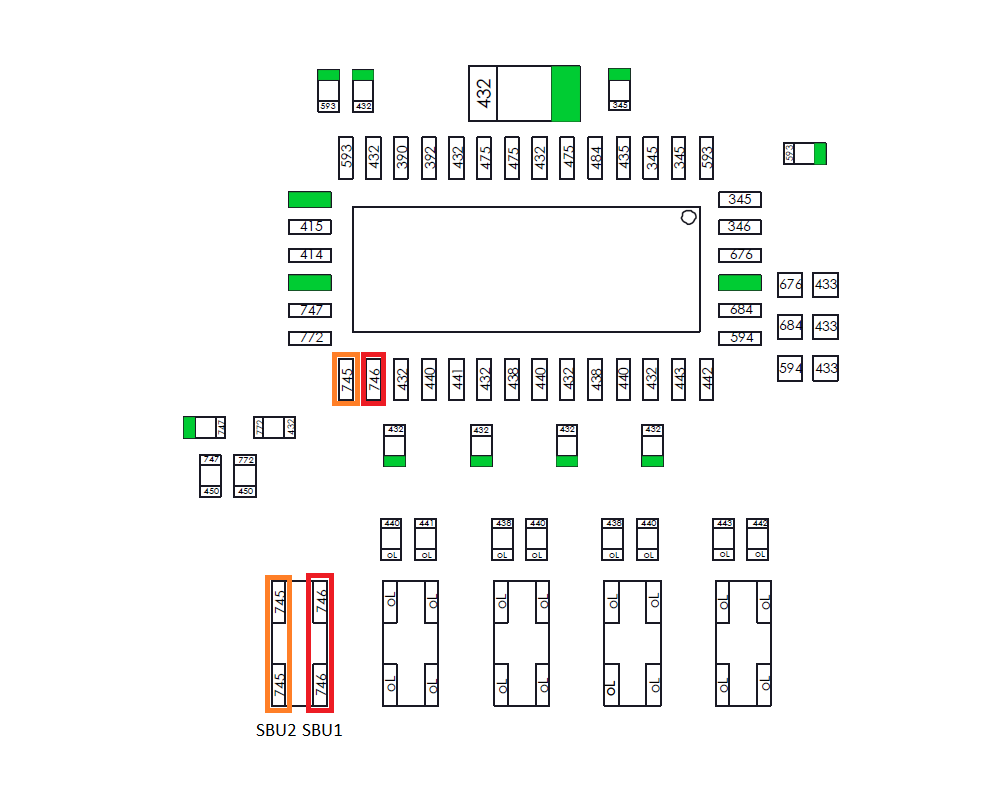

A8 would be SBU1. A jumping wire should go to the backside.

USBC_values_
USBC_values_1108×734 28.9 KB

PI3USB
PI3USB989×787 29.2 KB

3

switch lite has no pi3usb, A8 is NC. you can just leave it not connected

1 Like
4

LOL… :joy:
I missed the “lite”

5

Thanks either way Calvin haha. I’m curious if you have a schematic or where you got your pictures from?

6

When I start with repairing Nintendo Switches I was quick tired of measuring a known working board against the faulty board, so I drew a map and started to insert my measurements. Mostly diode mode values. Not perfect but sometimes helpfull. :grinning:

Here is a link to a picture of both sides: Diode Mode Readings + Values - Album on Imgur

1 Like
