I have a Xbox Series S with no power - I have found a short and it seems I identified the shorted cap (first time used voltage injection so I am quite happy that it worked).

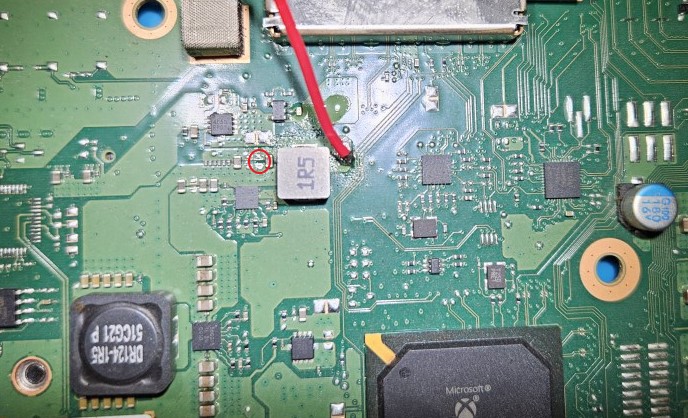

I marked the shorted cap which I took off. As I do not have a donor board for replacement does anybody know what it is or if the xbox will also with without it ?
Would be pretty helpful to get some help on that.
The Xbox will start without the cap.
But there should be a cap placed back.

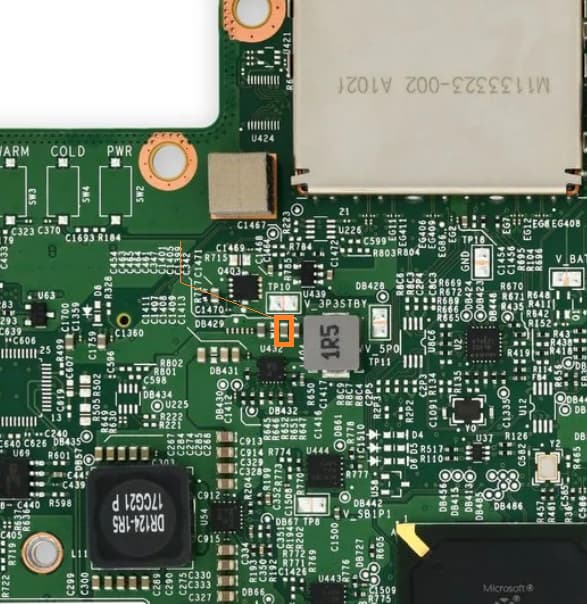

An older board with silkscreen will help:

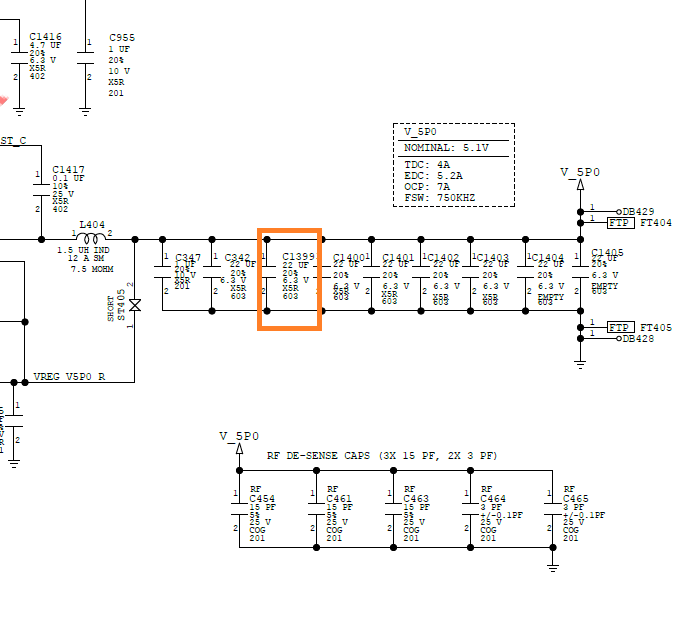

And with scheamtics:
→ 0603 22µF 20% 6.3V X5R
Great thanks @Calvin for the help - worked perfectly and xbox is up and running again. Thanks also for the schematics - I never understood how to read but now I have understood.

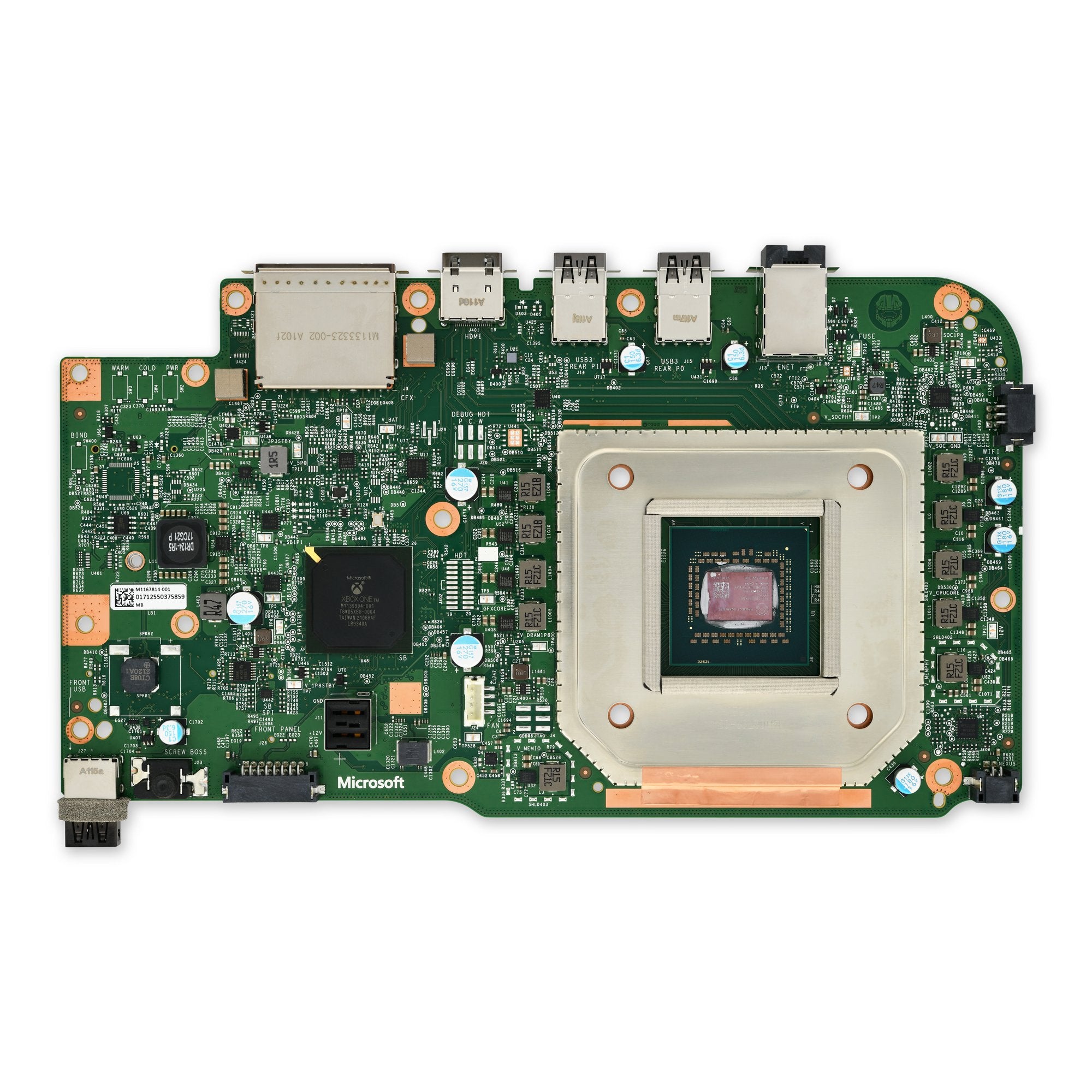

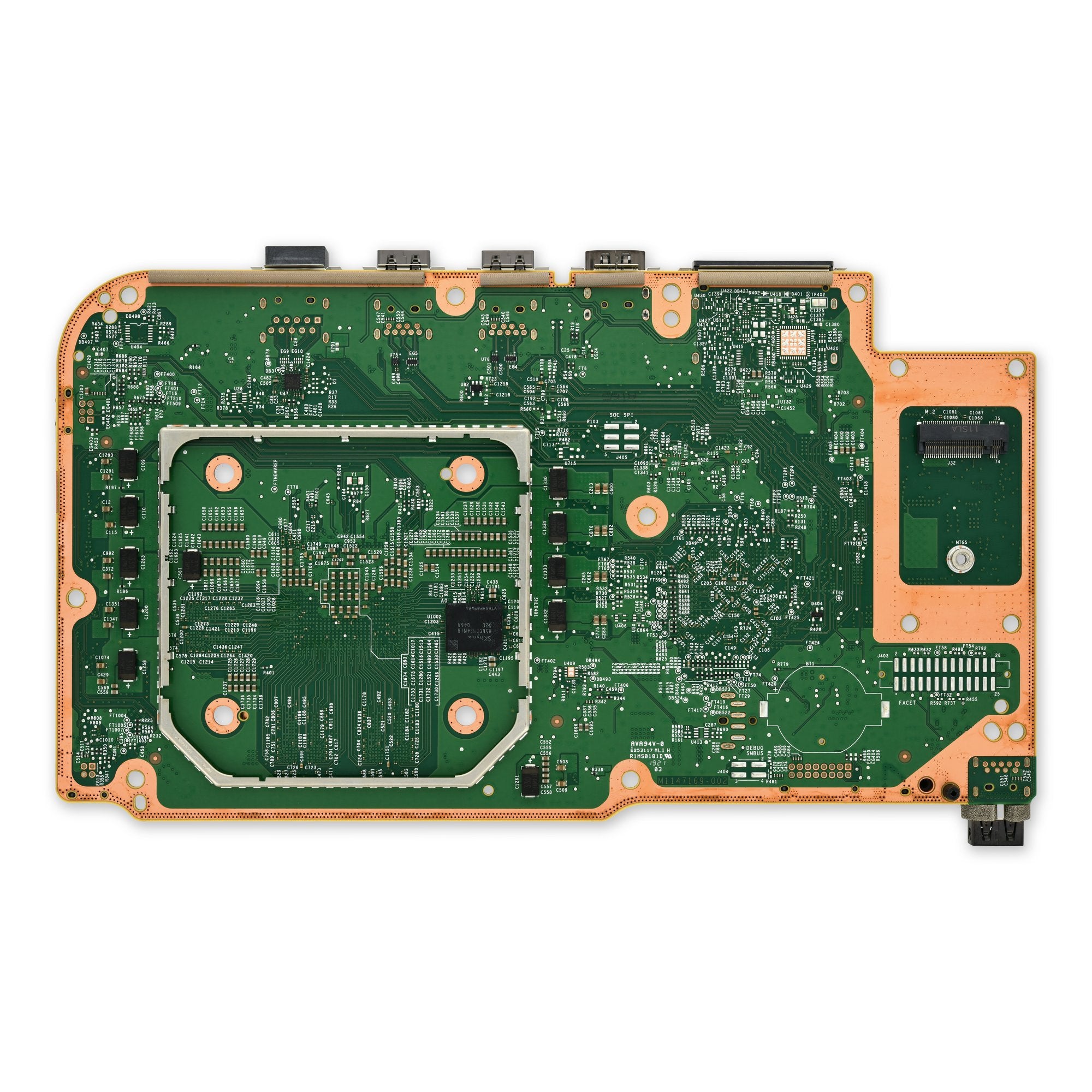

But for that the component identification must be printed on the motherboard which is missing in my case. Are there any pictures of the full mainboard with the component identification? Would be great to have it for the next time
